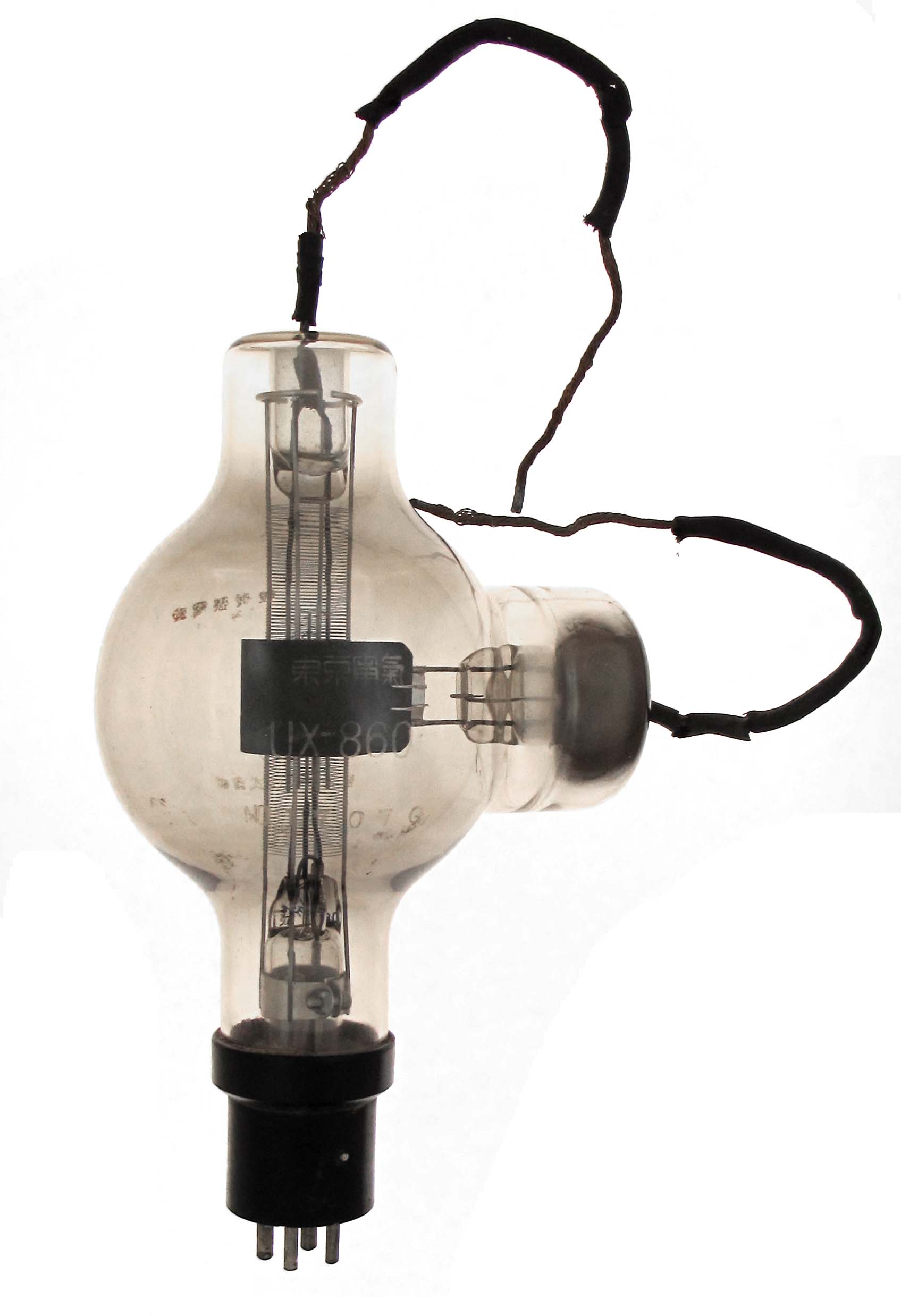

UX-860

The UX-860 is a Japanese version of the RCA 860 made by the Tokyo Electric (Toshiba) Company. The D-860 is the same tube made by Kawanishi. This example has a carbon anode.

Length = 8.25" Diameter = 4.75"
Max voltage = 2250
Max current = 95 ma
Fil voltage = 10
Fil current = 3.25         GOTO INDEX
