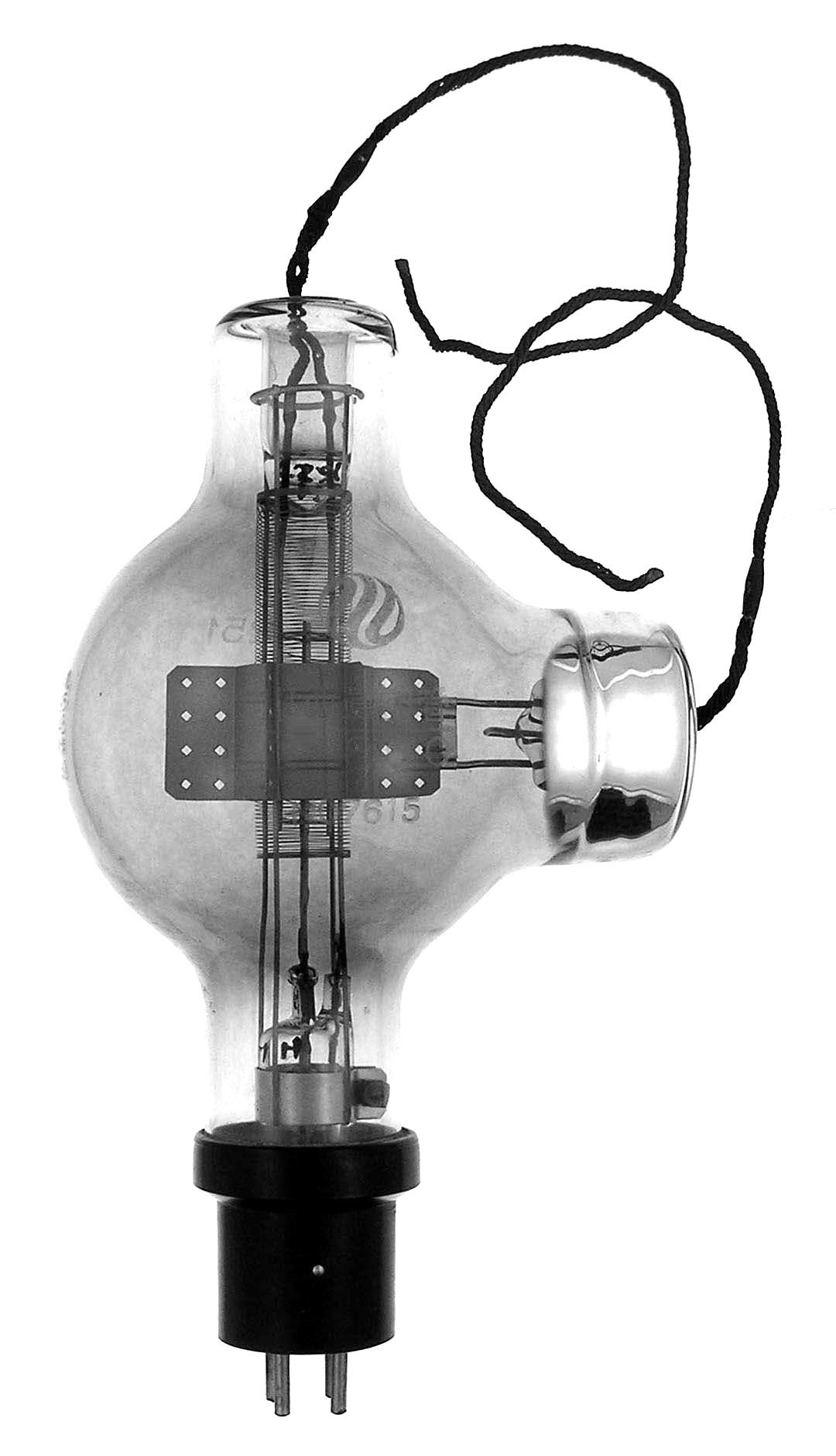

D-860

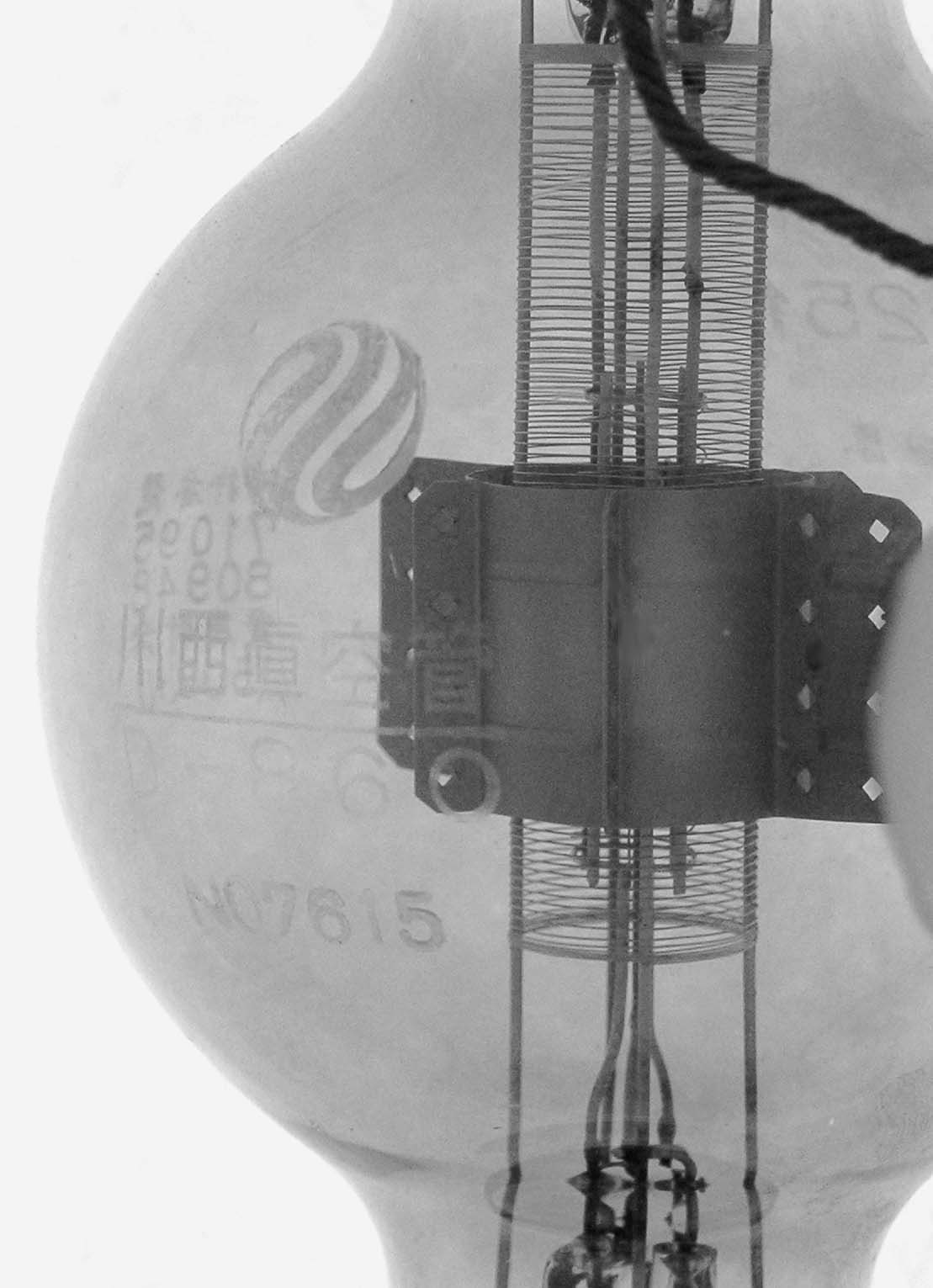

The D-860 is a Japanese version of the RCA 860 made by the Kawanishi Company as their first effort into transmitting tube production in 1935. The tube is also marked VS-251. The UX-860 is the same tube made by Tokyo Electric (Toshiba).

Length = 8.25" Diameter = 4.75"
Max voltage = 2250
Max current = 95 ma
Fil voltage = 10
Fil current = 3.25         GOTO INDEX
