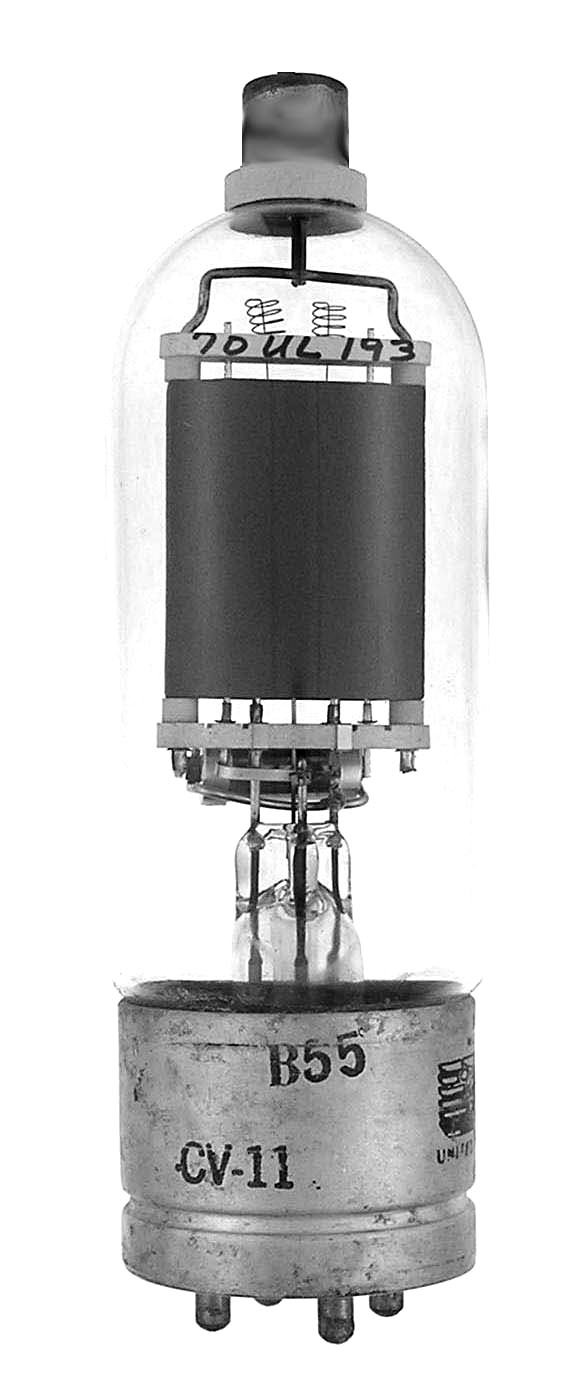

CV11

The CV11 is a 65 watt triode with a mu of 14 designed for full ratings to 30 MHz. Similar to a Taylor 841-SW. United and others also made the same tube with a 25 watt base and called it the UXCV-11.

Length = 6.60" Diameter = 1.87"
Max voltage = 1500
Max current = 150 ma
Fil voltage = 10
Fil current = 2.5 amps
Data sheet:
