6146W

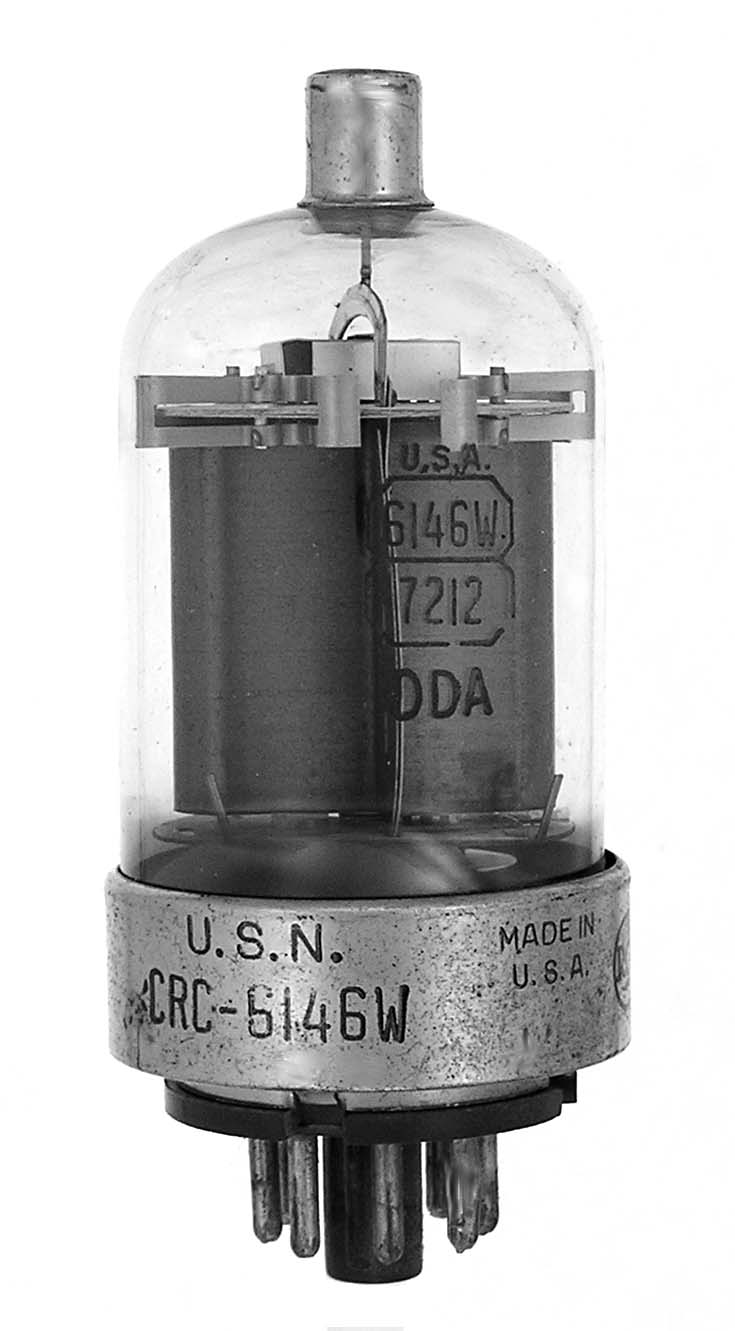

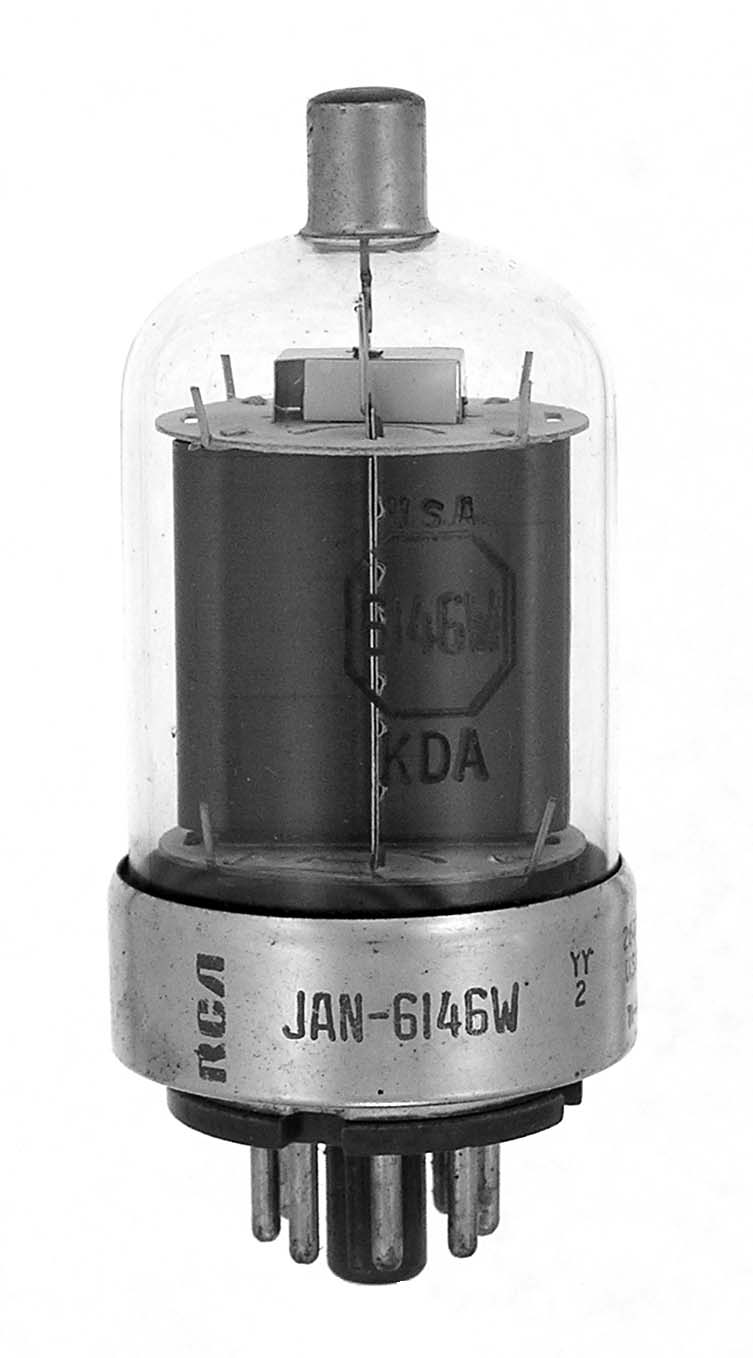

The 6146W or 7212 is a 20 watt beam pentode with a maximum frequency of 60 MHz and usable to 175 MHz. The 6146W is a ruggedized version of the 6146.

Length = 3.51" Diameter = 1.65"
Max voltage = 750
Max current = 135 ma
Fil voltage = 6.3
Fil current = 1.25 amps
Data sheet:
