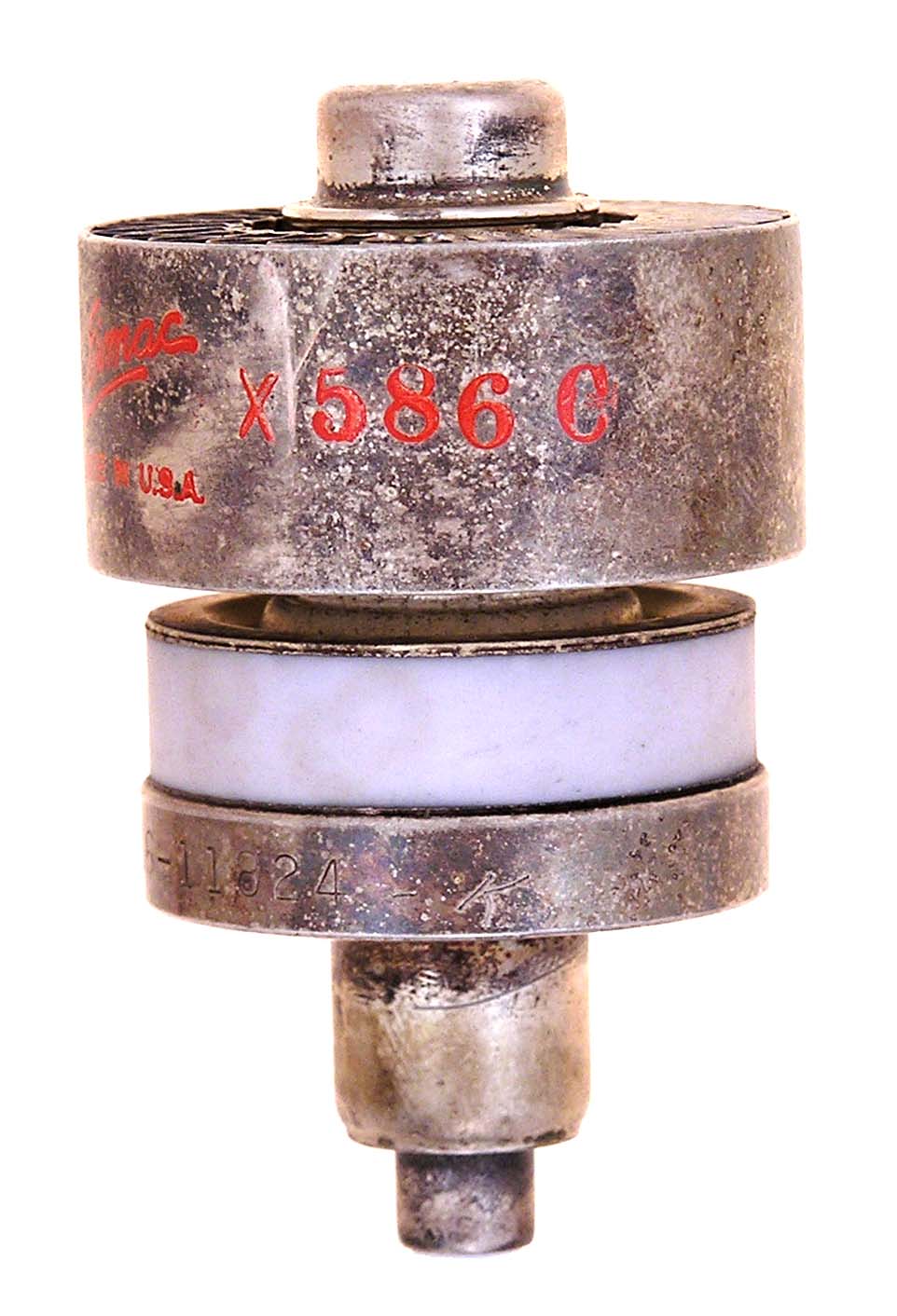

X586C

The X586C is an experimental version of the 4X150G. It is a 150 watt tetrode designed by Eimac with full ratings to 1500 MHz for pulse operation and 500 MHz for CW. Made in 1954 its heater voltage is the main difference. Early versions of the X586 series were glass insulated.

Length = 2.75" Diameter = 1.64"
Max voltage = 1250 CW, 7000 PULSE
Max current = .25 amp CW, 7 amps pulse
Fil voltage = 6
Fil current = 1.66 amps (10 watt)         GOTO INDEX
