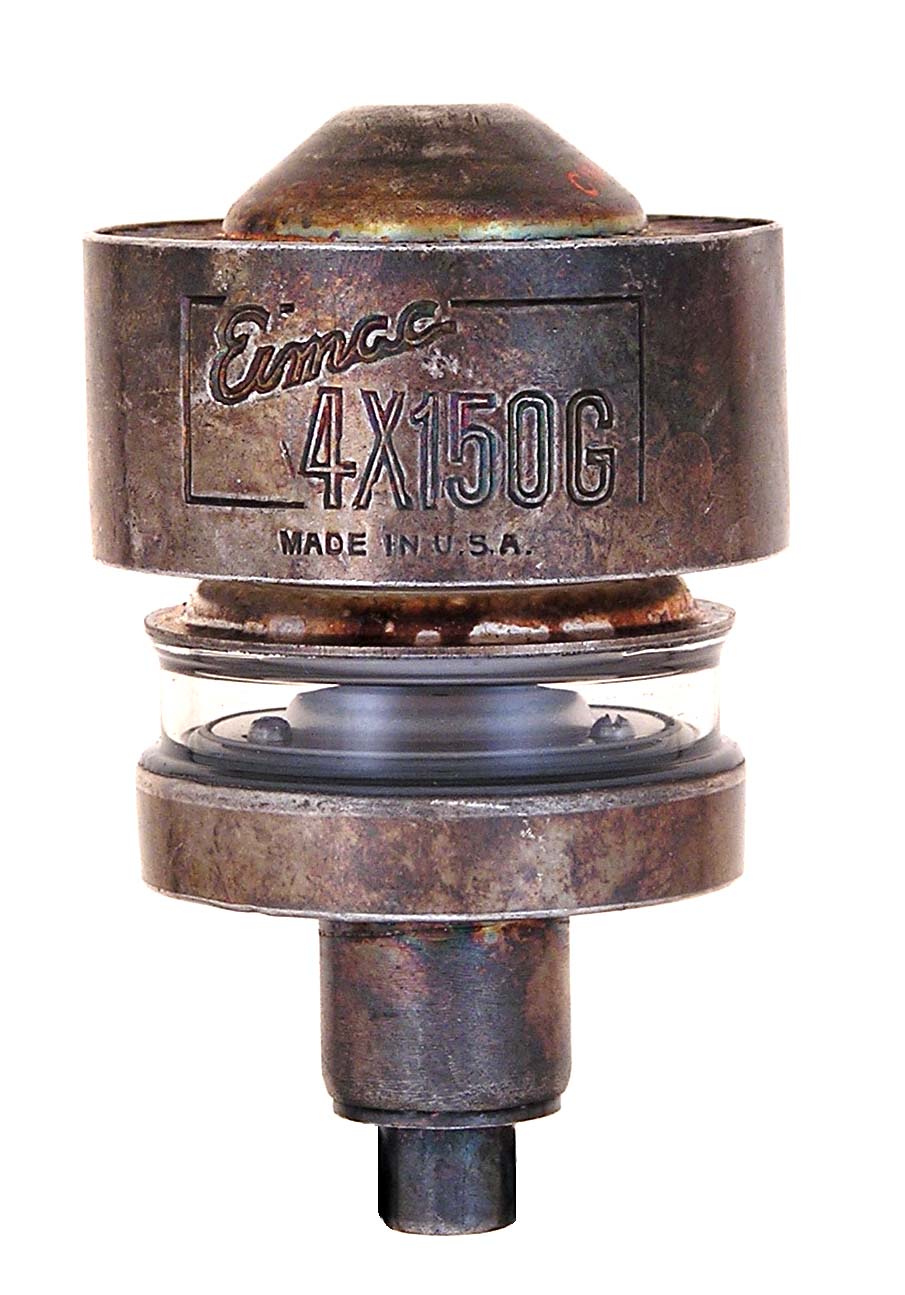

4X150G

The 4X150G is a 150 watt tetrode designed by Eimac with full ratings to 1500 MHz for pulse operation and 500 MHz for CW. It was later upgraded to 250 watts and designated 8172/4X150G.

Length = 2.75" Diameter = 1.64"
Max voltage = 1250 CW, 7000 PULSE
Max current = .25 amp CW, 7 amps pulse
Fil voltage = 2.5
Fil current = 6.25 amps         GOTO INDEX
