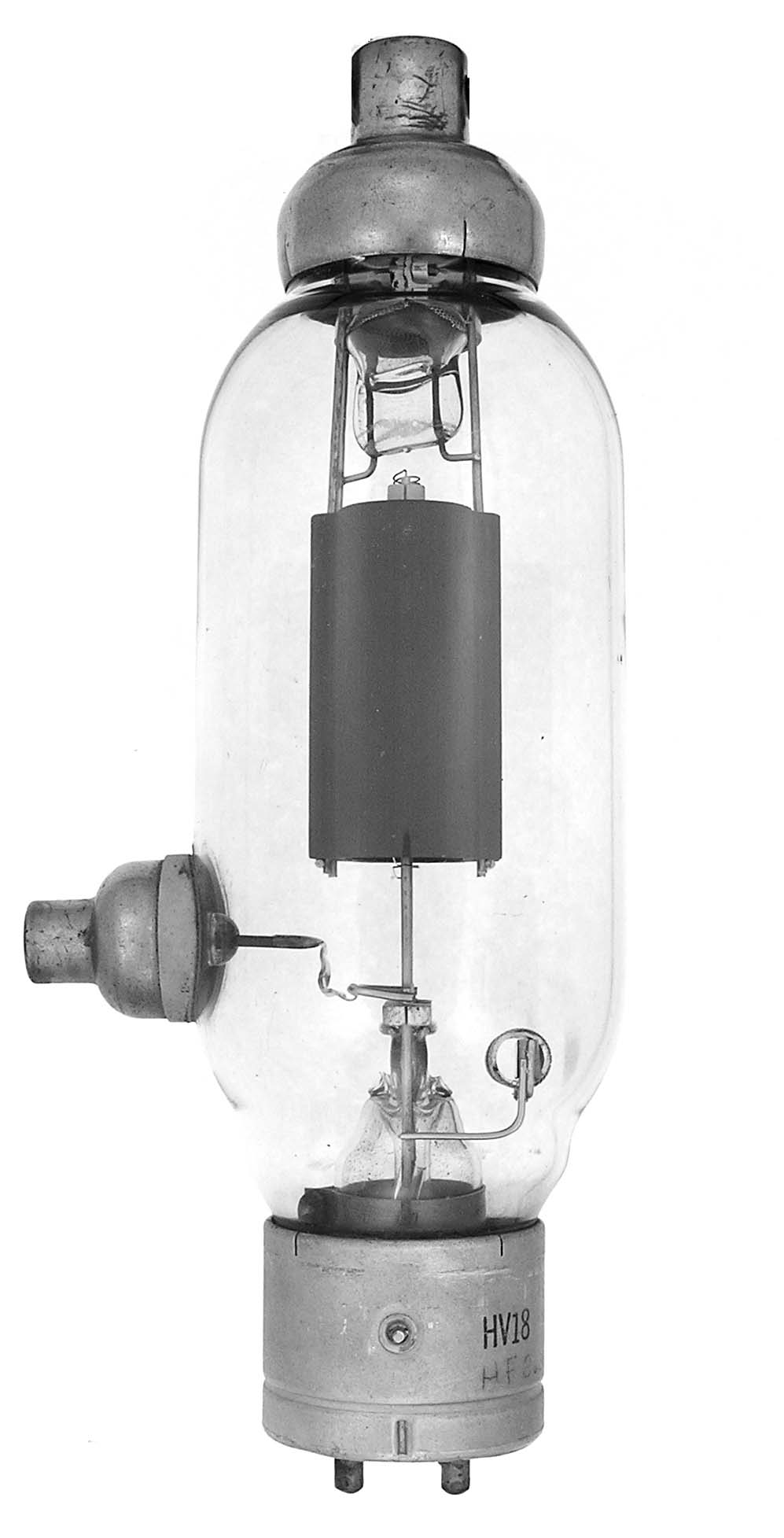

HV-18

The HV-18 is a 150 watt triode with a mu of 18 and full ratings to 20 MHz. Interchangable with a HF-200.

Length = 9.50" Diameter = 2.50"
Max voltage = 2500
Max current = 210 ma
Fil voltage = 10
Fil current = 3.85 amps         GOTO INDEX
