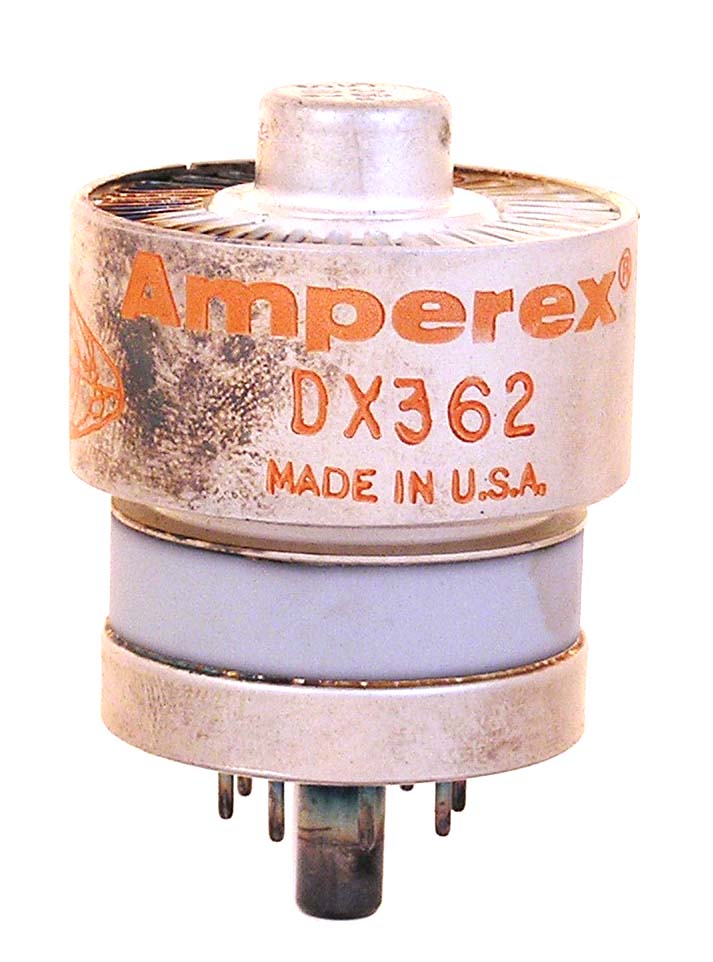

The DX362 is a 350 watt, forced air cooled, power tetrode with a full rating frequency of 500 MHz made by Amperex. The 4CX350F/8322 is a version made by Eimac.
Length = 2.47" Diameter = 1.64"
Max voltage = 2500
Max current = 300 ma
Fil voltage = 26.5
Fil current = .66 amps GOTO INDEX
