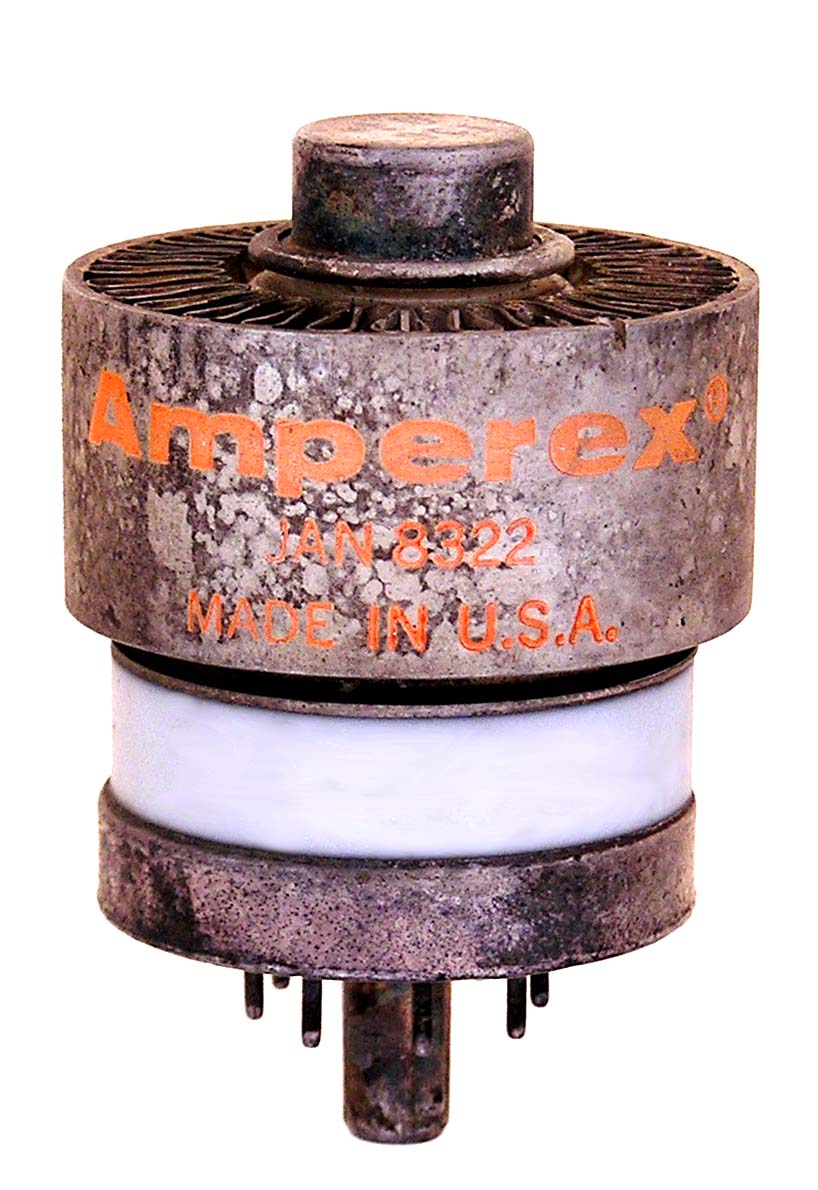

8322/4CX350F

The 8322 or 4CX350F is a 350 watt, forced air cooled, power tetrode with a full rating frequency of 500 MHz. The 4CX350A (8321) is a similar tube with a 6 volt filament. The 4CX350FJ is a rugedized version of the 4CX350F (8322).

Length = 2.47" Diameter = 1.64"
Max voltage = 2500
Max current = 300 ma
Fil voltage = 26.5
Fil current = .66 amps         GOTO INDEX
