8432

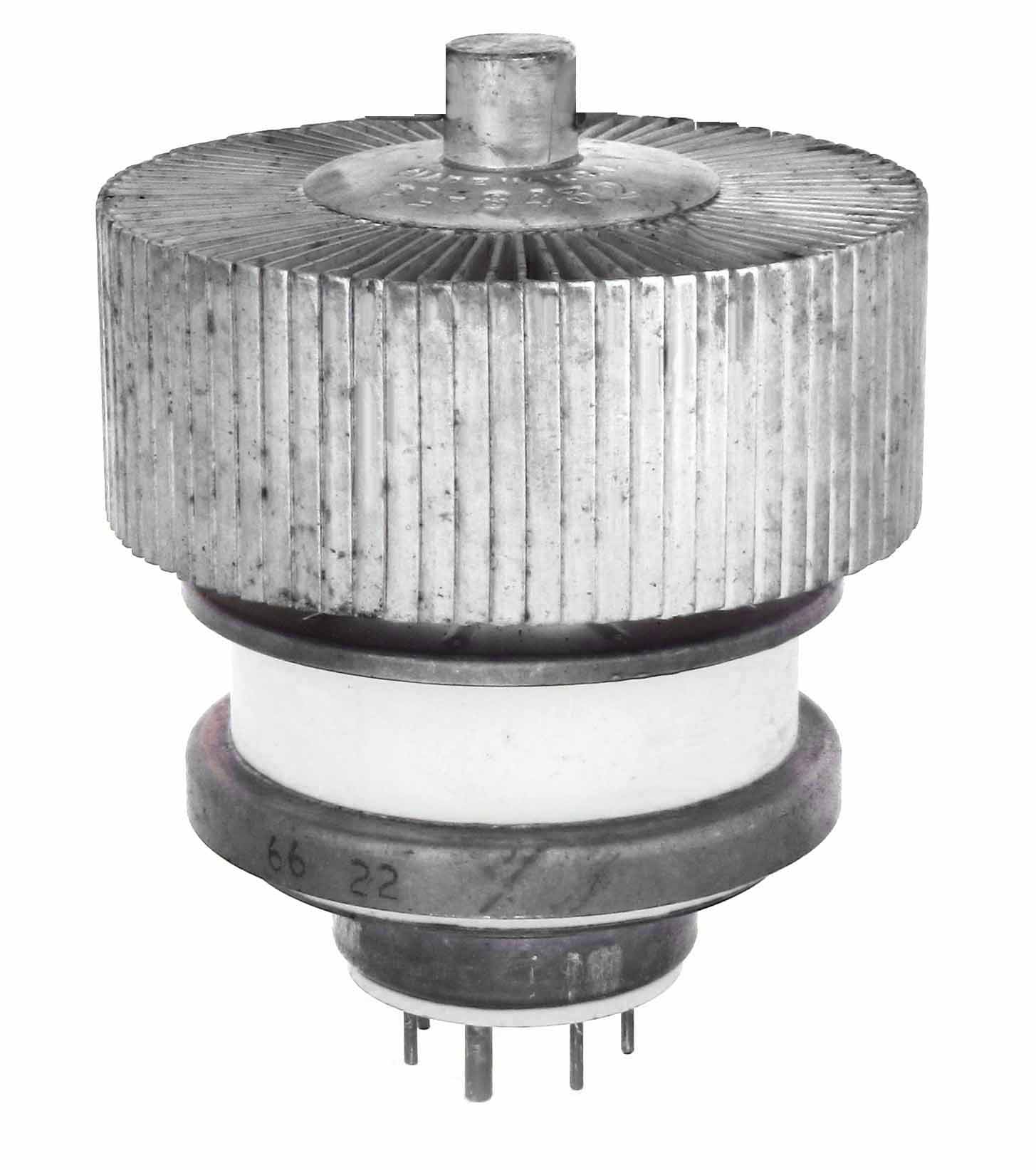

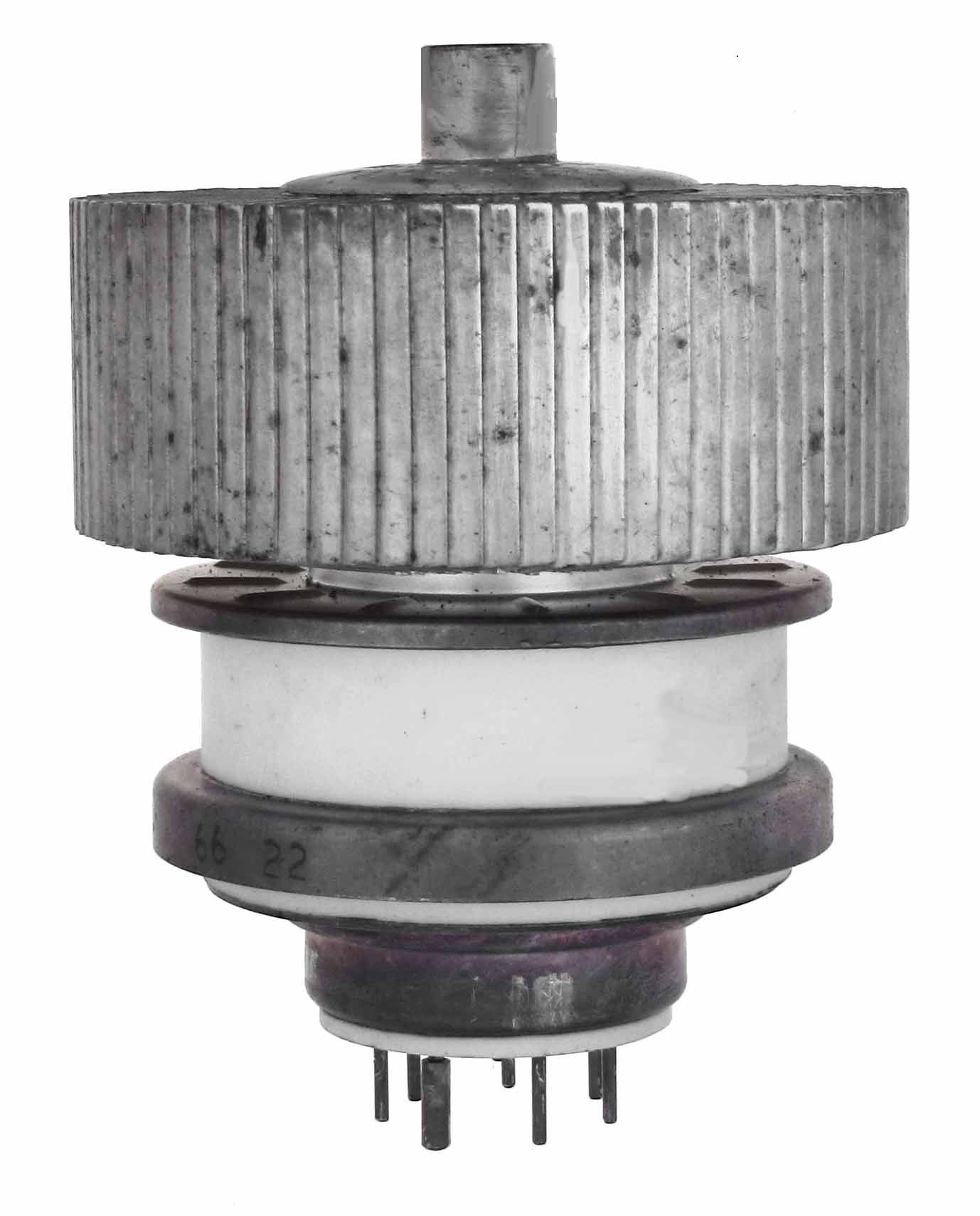

The 8432 or PL-R-206 is a 1000 watt dissipation radial beam pentode requiring forced air cooling. Full ratings to 30 MHz. This example was made by Penta (PL-8432) who developed this type in 1963. It is the same as the 8295A (PL-172) with a smaller diameter.

Length = 4.75" Diameter = 3.50"
Max voltage = 3000
Max current = 1 amp
Fil voltage = 6
Fil current = 8.2 amps         GOTO INDEX
