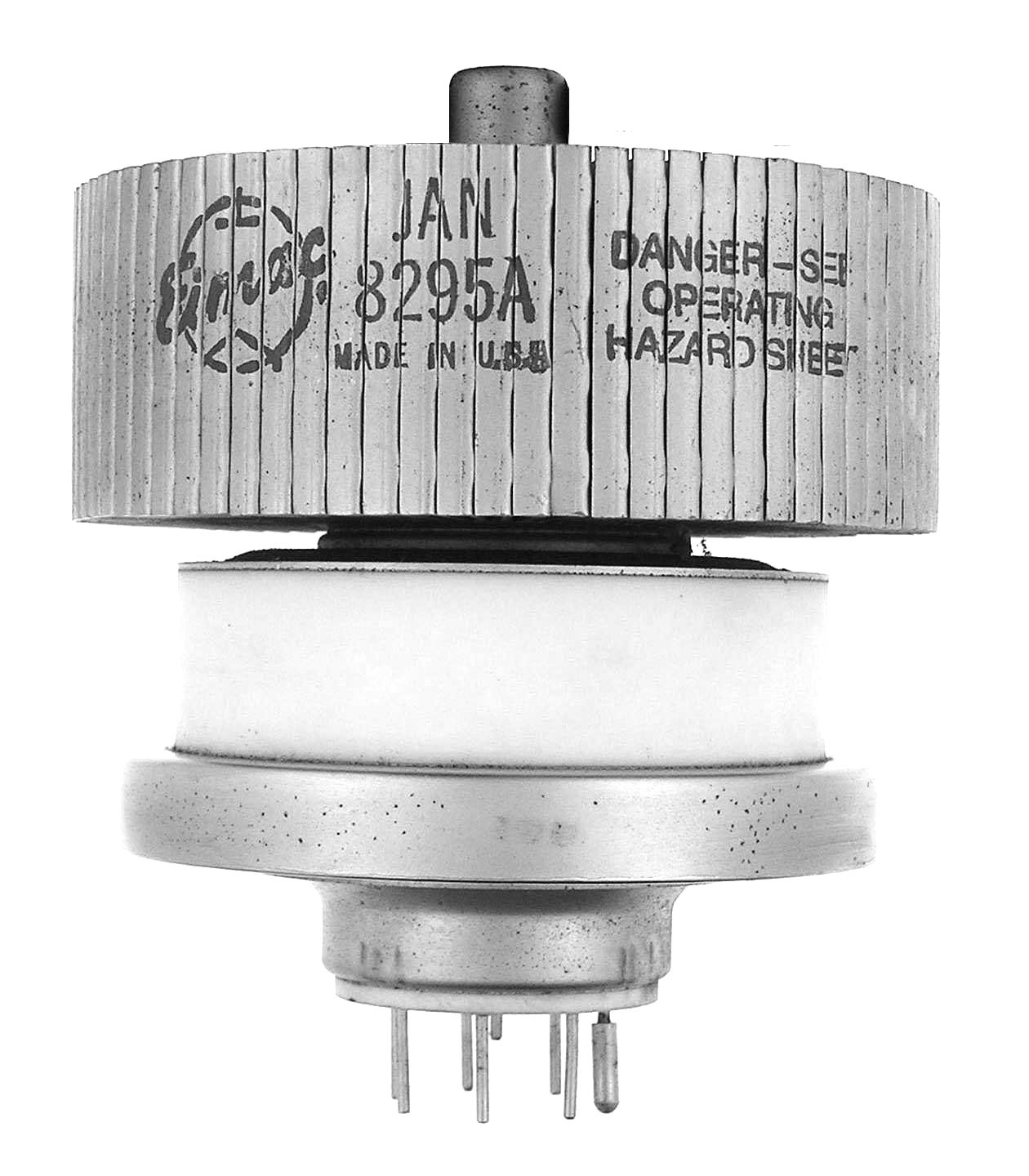

8295A

The 8295A is a 1000 watt dissipation radial beam pentode requiring forced air cooling. Full ratings to 30 MHz. The "A" version is supposed to have better cooling effeciency than the 8295. Penta made the 8295 under their PL-172 designation.

Length = 5.05" Diameter = 4.03"
Max voltage = 3000
Max current = 1 amp
Fil voltage = 6
Fil current = 8.2 amps         GOTO INDEX
