832

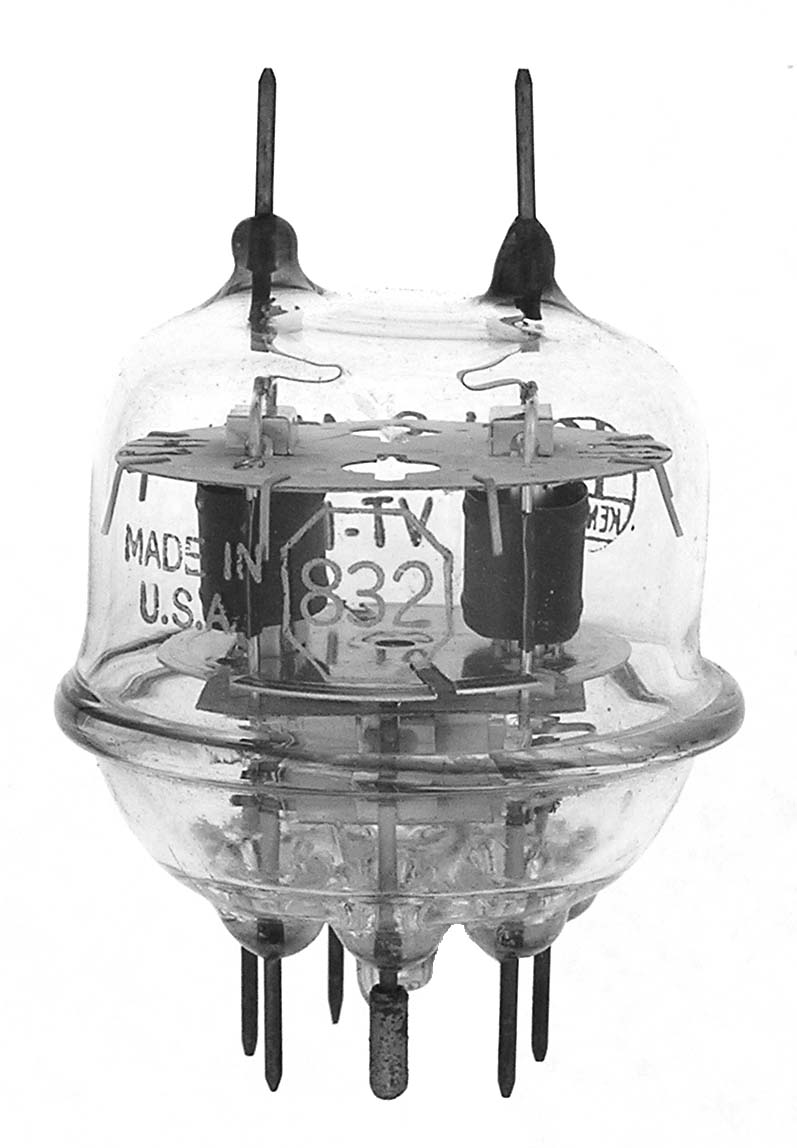

The 832 or VT-118 is a 15 watt dissipation dual pentode designed for VHF applications. Full ratings to 200 MHz. This example was made by Kenrad. It was replaced for most applications with the 832A.

Length = 3.44" Diameter = 2.37"
Max voltage = 750
Max current = 115 ma
Fil voltage = 6.3 or 12.6
Fil current = 1.6 or .8 amps         GOTO INDEX
