832A

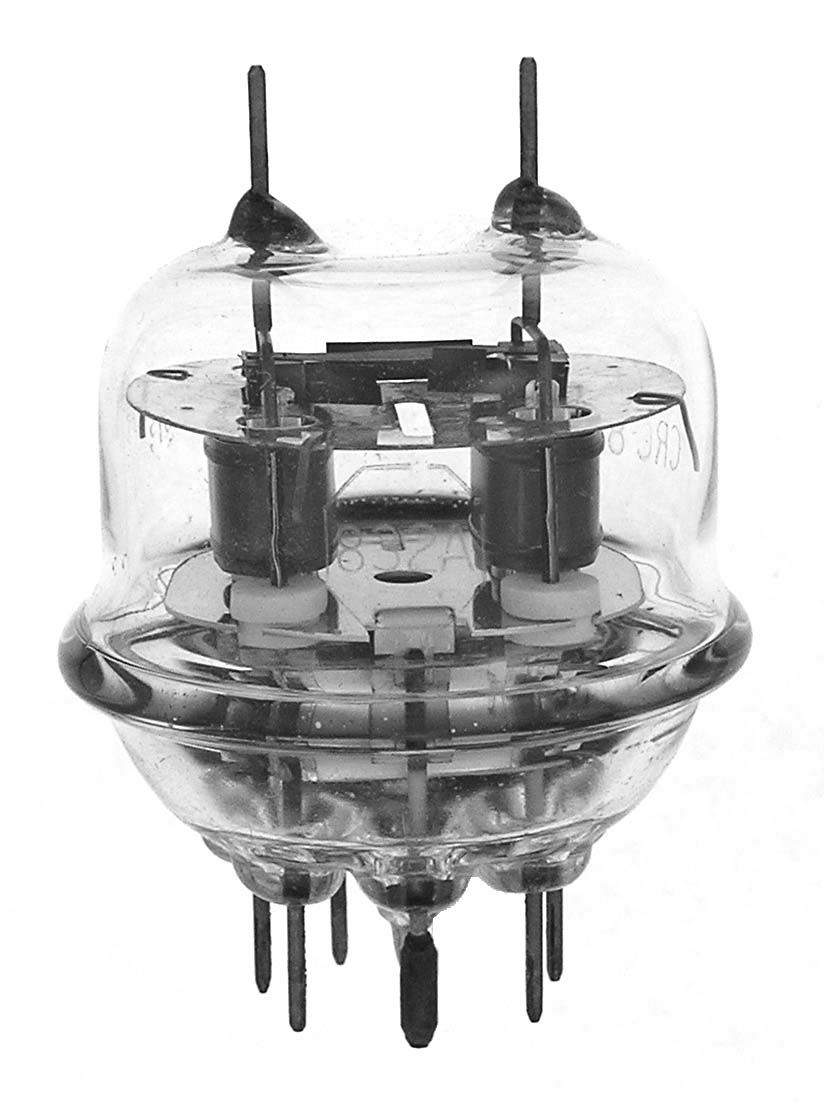

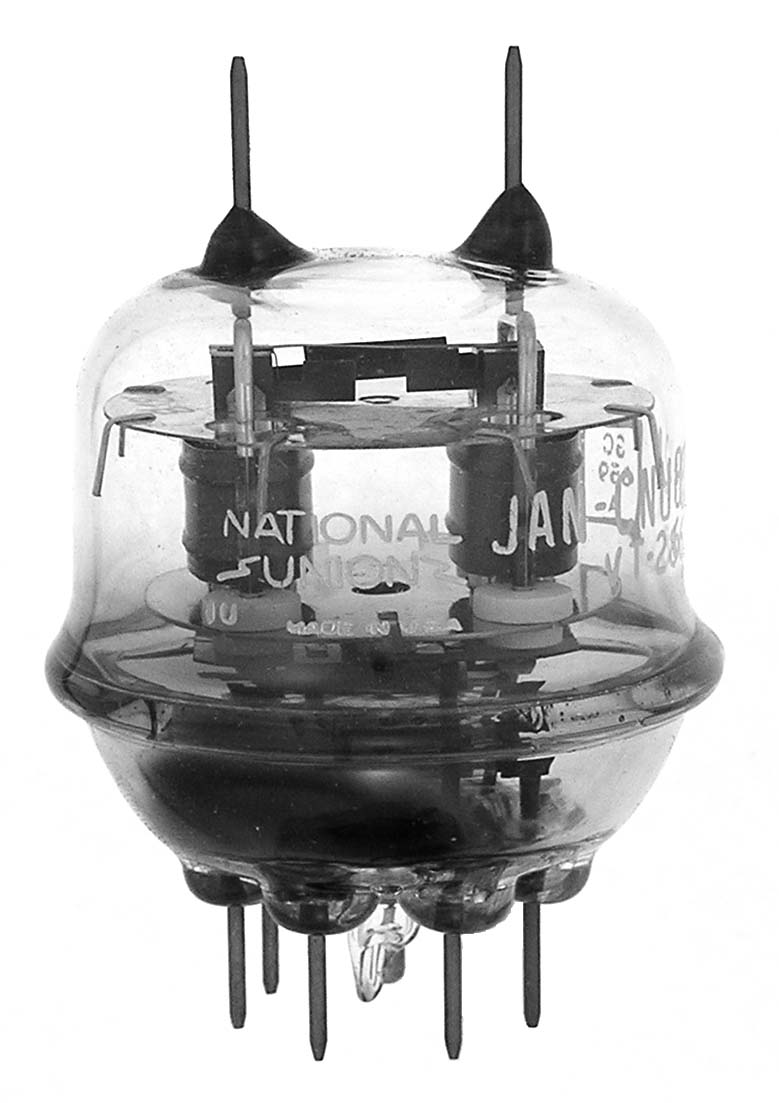

The 832A is a 15 watt dissipation dual pentode designed for VHF applications. Full ratings to 200 MHz. The first example is an RCA and the second National Union.

Length = 3.44" Diameter = 2.37"
Max voltage = 750
Max current = 115 ma
Fil voltage = 6.3 or 12.6
Fil current = 1.6 or .8 amps         GOTO INDEX
