8042

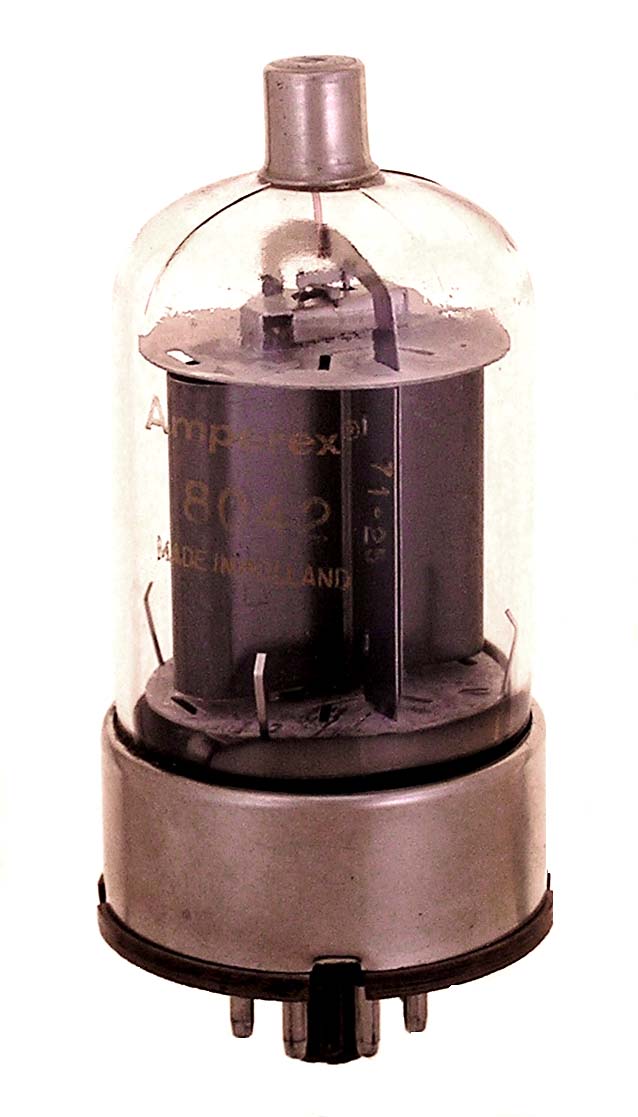

The 8042 is a 35 watt beam pentode with a maximum frequency of 60 MHz for full power and usable to 175 MHz. This is a quick heating version of the 6146 (A). This example was made by Amperex.

Length = 3.51" Diameter = 1.65"
Max voltage = 750
Max current = 160 ma
Fil voltage = 1.6
Fil current = 3.2 amps         GOTO INDEX
