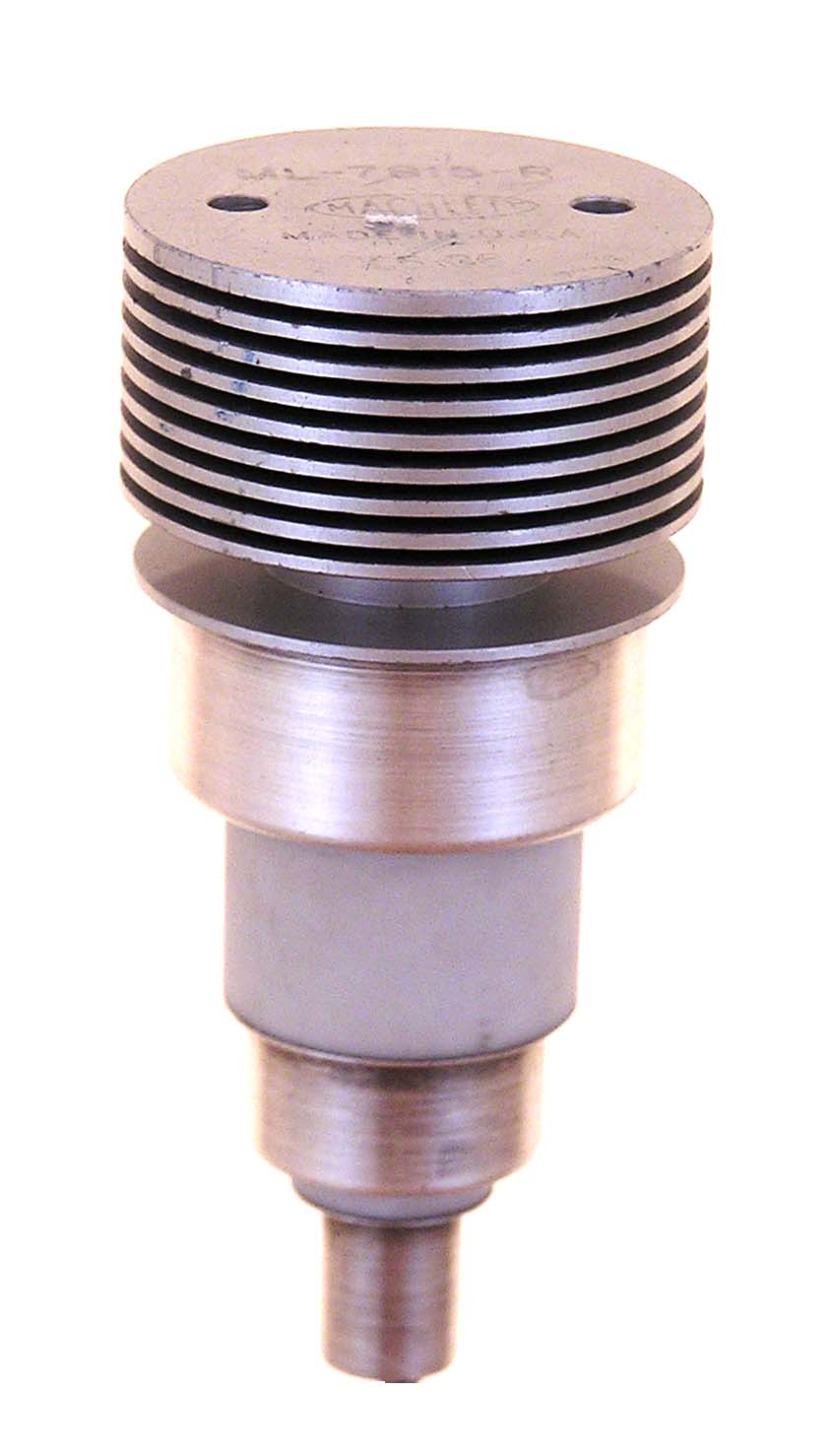

7815R

The 7815R or 3CPX100A5 is a 100 watt, planar triode with a full rating frequency of 2.5 GHz and a mu of 100 designed for pulse service. This is a 3CPN10A5 (7815) with a forced air cooled anode.

Length = 2.75" Diameter = 1.27"
Max voltage = 3500
Max current = 3 amps pulse
Fil voltage = 6
Fil current = .90 to 1.05 amp         GOTO INDEX
