7815

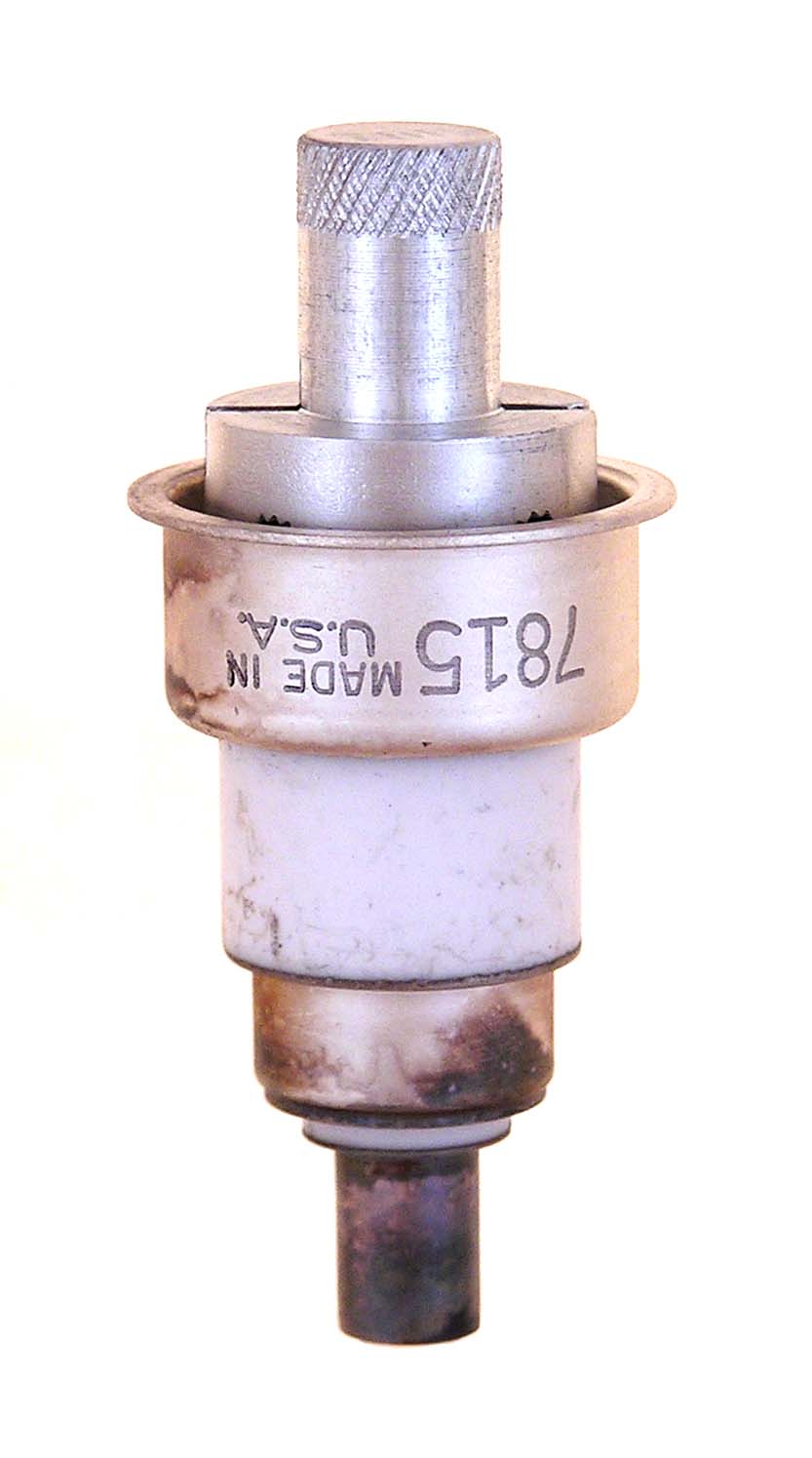

The 7815 or 3CPN10A5 is a 10 watt, planar triode with a full rating frequency of 3 GHz and a mu of 100 designed for pulse service. The 7815R is the same tube with a radiator anode cooler.

Length = 2.28" Diameter = 1.20"
Max voltage = 3500
Max current = 3 amps pulse
Fil voltage = 6
Fil current = .90 to 1.05 amp         GOTO INDEX
