715B

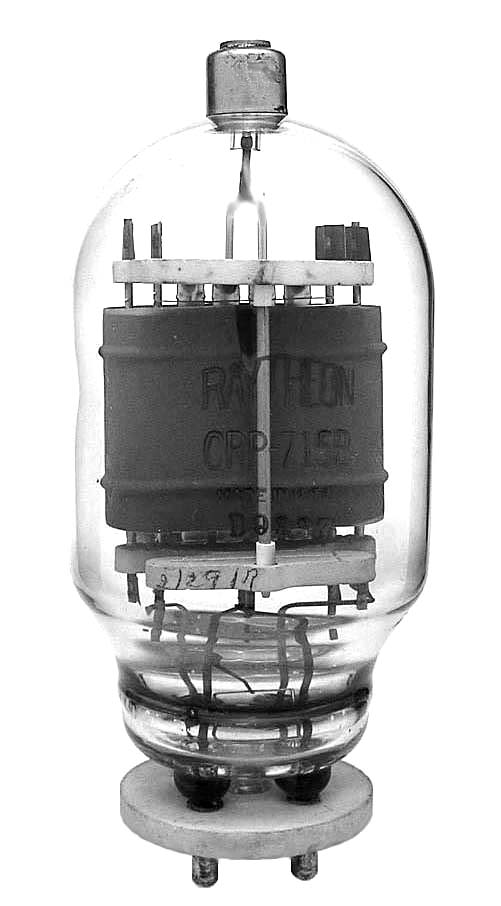

The 715B is a 60 watt dissipation tetrode designed for high voltage pulse modulator service. It replaced the 715A and had higher power capacity. This example was made by Raytheon.

Length = 5.50" Diameter = 2.37"
Max voltage = 15 kv peak
Max current = 15 amps peak
Fil voltage = 26.5
Fil current = 2.1 amps
Data sheet:
