715A

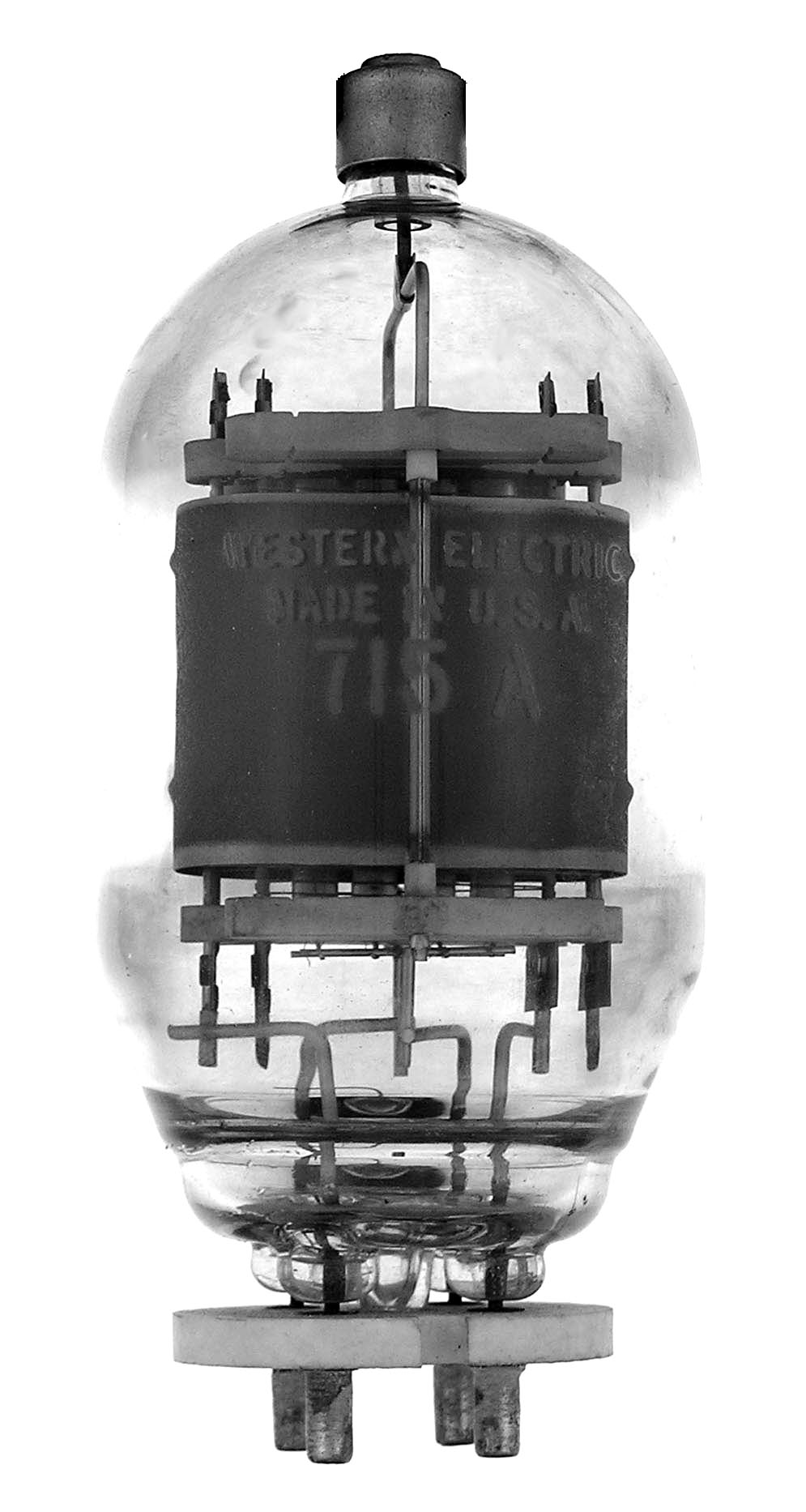

The 715A is a 60 watt dissipation tetrode designed for high voltage pulse modulator service. This example was made by Western Electric.

Length = 5.50" Diameter = 2.37"
Max voltage = 14+ kv peak
Max current = 10 amps peak
Fil voltage = 27
Fil current = 2.15 amps         GOTO INDEX
