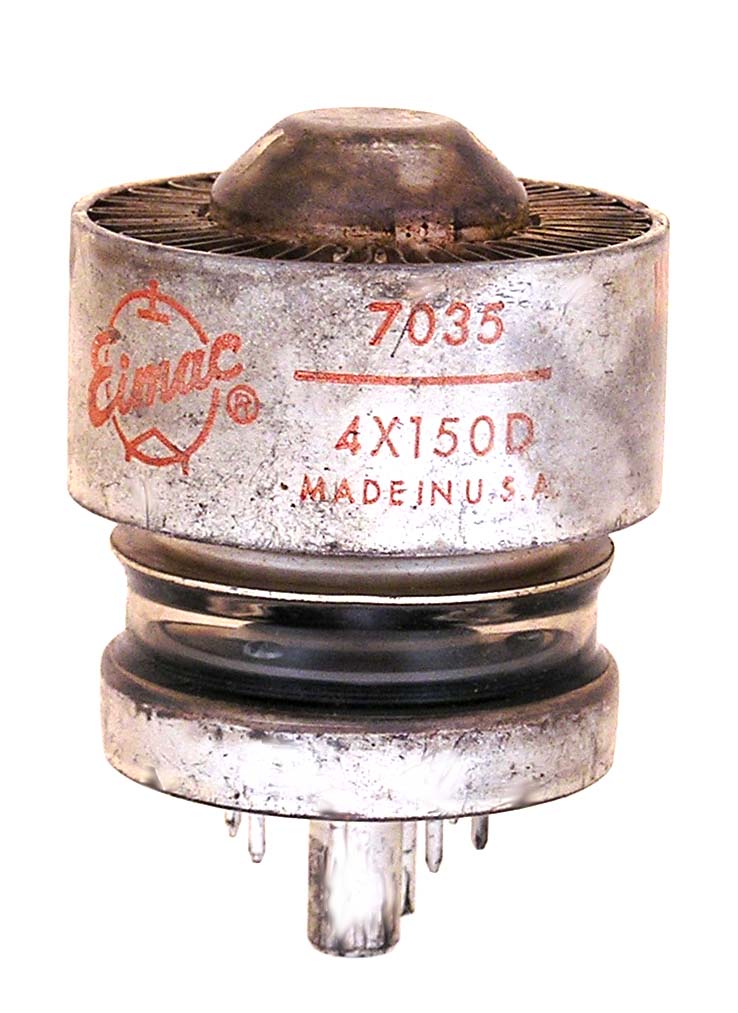

7035/4X150D

The 7035/4X150D is a 250 watt, forced air cooled, power tetrode with a full rating frequency of 150 MHz . This is an uprated version of the original 4X150D. The 7609 is a vibration resistant version that replaced the 7035.

Length = 2.47" Diameter = 1.64"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 26.5
Fil current = .62 amps         GOTO INDEX
