7609

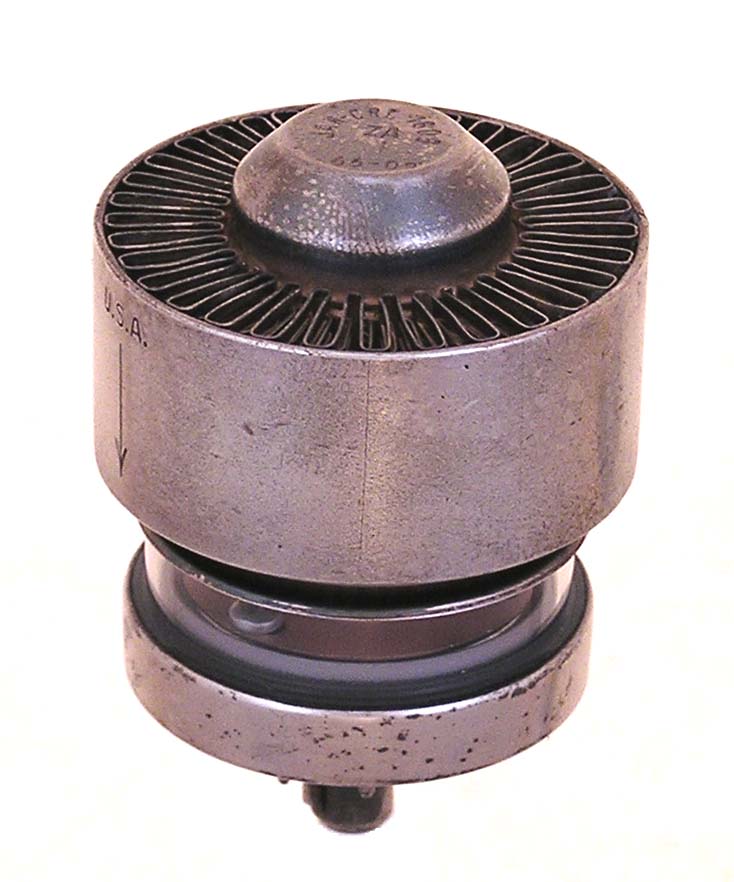

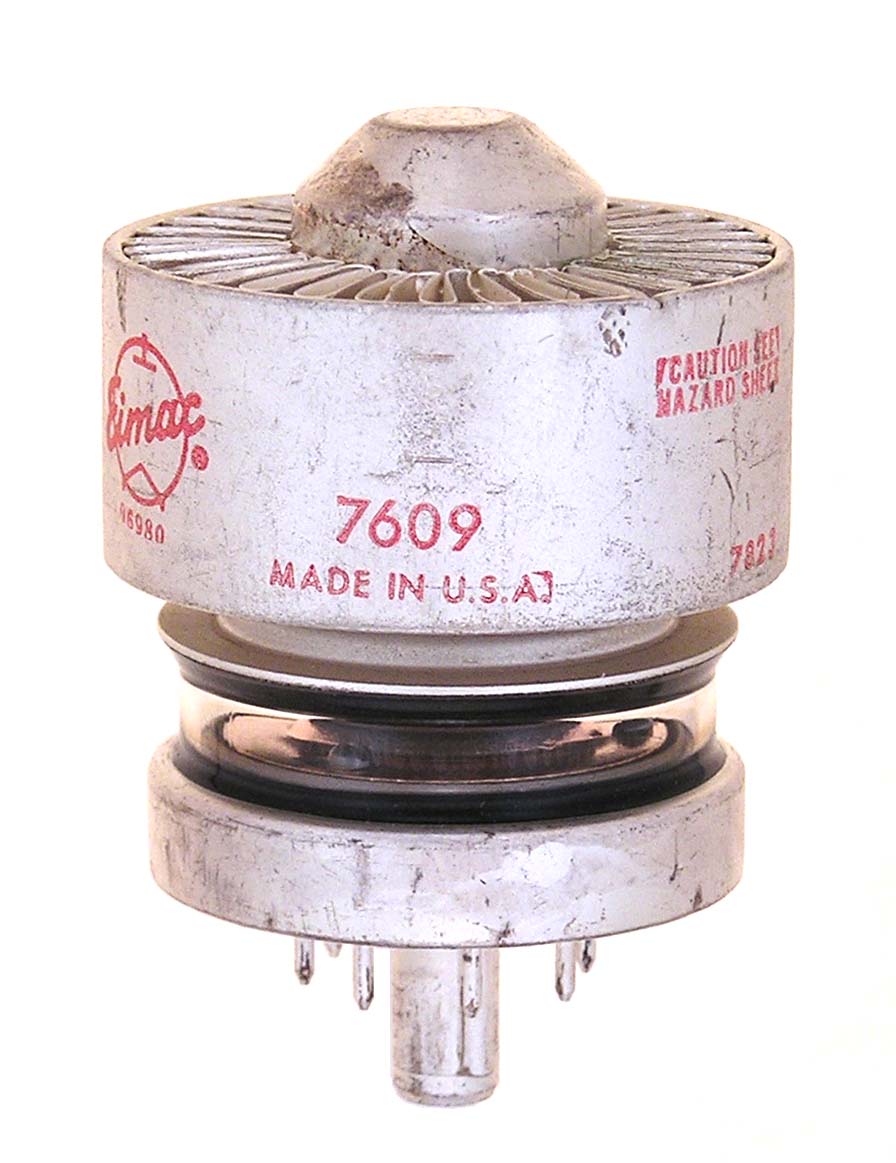

The 7609 is a 250 watt, forced air cooled, power tetrode with a full rating frequency of 150 MHz. It is a vibration resistant version of the 7035/4X150D. The first example was made by Eimac and the second by RCA.

Length = 2.47" Diameter = 1.64"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 26.5
Fil current = .62 amps         GOTO INDEX
