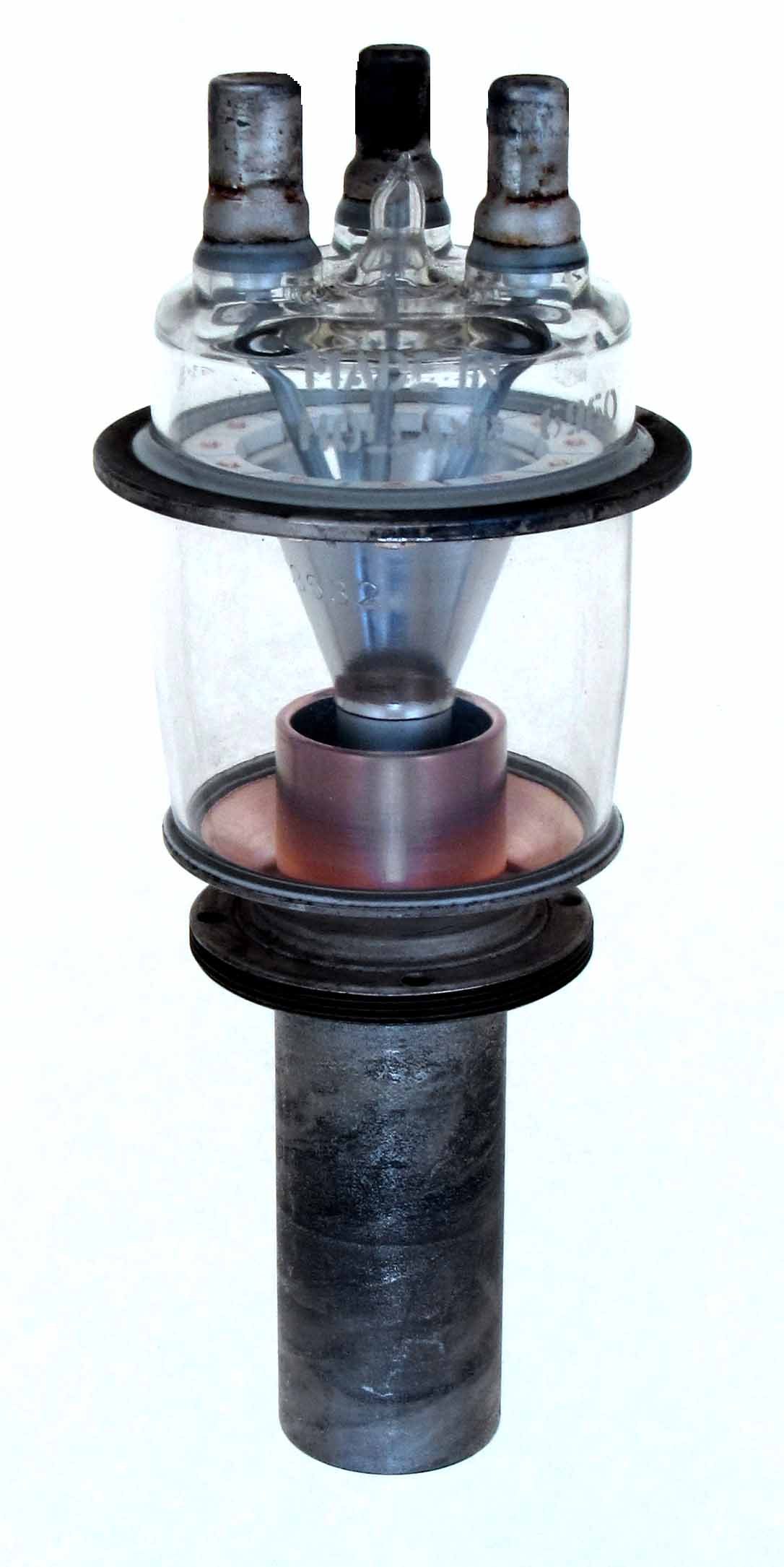

6960

The 6960 is a 6 KW power triode with a mu of 32. It requires water cooling and operates at full ratings to 30 MHz. The water jacket screws onto the tube. Replaced by the 6960A.


Length = 7.12" Diameter = 2.63"
Max voltage = 7200
Max current = 2.2 amps
Fil voltage = 12.6
Fil current = 33 amps
Data sheet:
