6960A

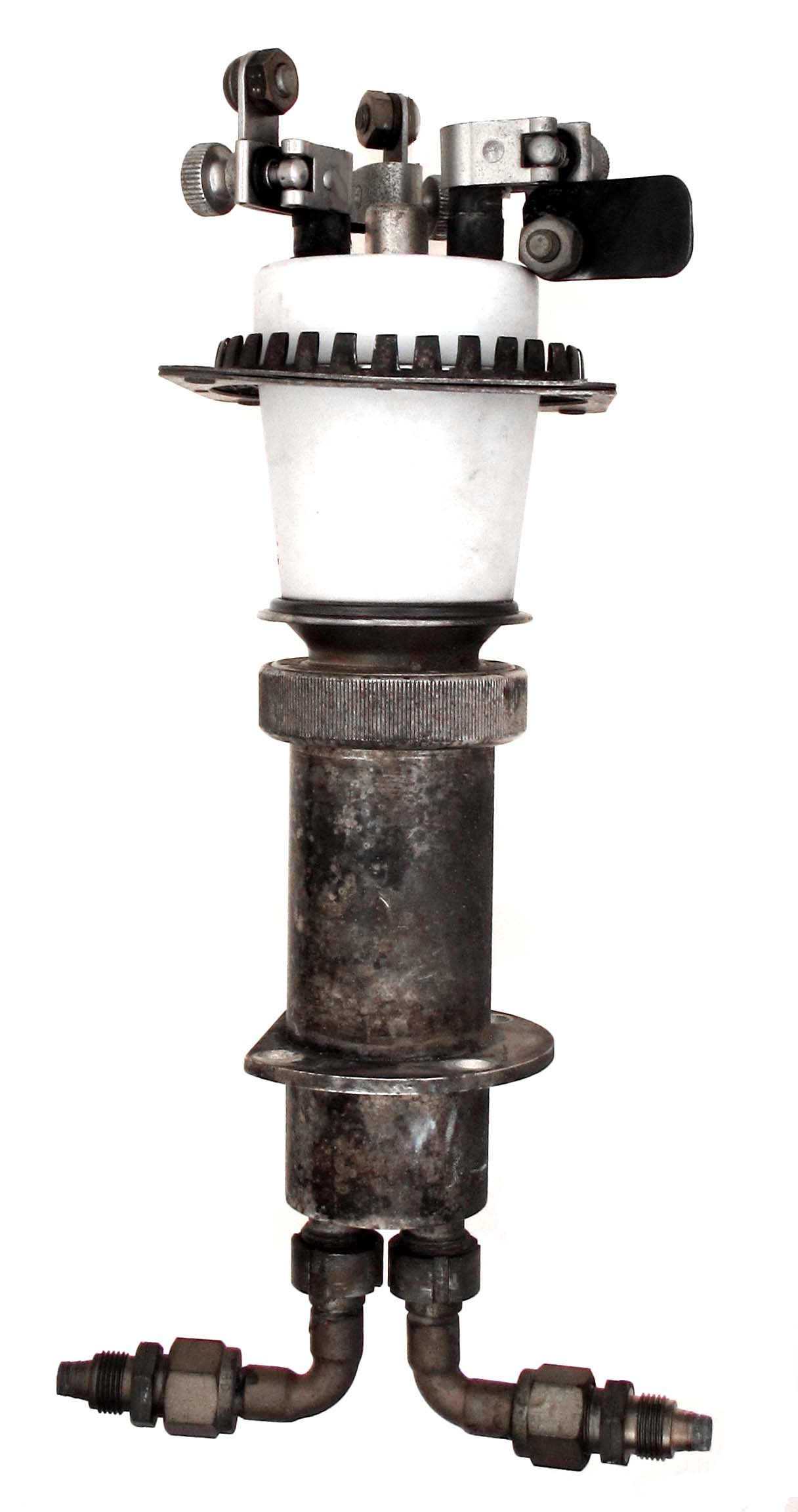

The 6960A or TBW7/8000 is a power triode with a mu of 32. It requires water cooling and operates at full ratings to 30 MHz. The water jacket screws onto the tube. Newer tubes were made in ceramic. The last example is of the ceramic tube with all the filament connectors, grid ring and water jacket.


Length = 7.12" Diameter = 2.63"
Max voltage = 7200
Max current = 2.2 amps
Fil voltage = 12.6
Fil current = 33 amps         GOTO INDEX
