6884

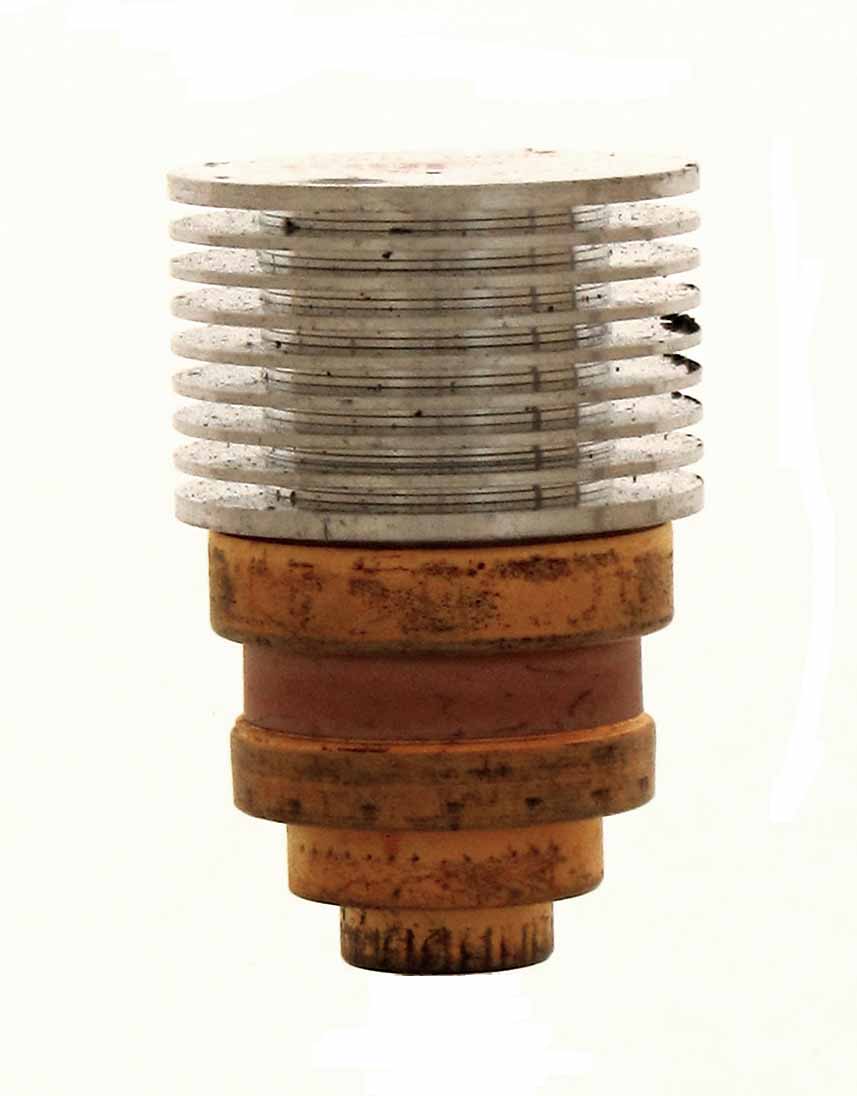

The 6884 is a 115 watt tetrode with a maximum frequency for full output of 400 MHz and can be used to 2000 MHz. The 6816 is the same tube with a 6.3 volt, 2.1 amp filament. An RCA development as in this example, they were also made by Eimac.

Length = 1.88" Diameter = 1.25"
Max voltage = 1000
Max current = 180 ma
Fil voltage = 26.5
Fil current = .52 amps         GOTO INDEX
