6816

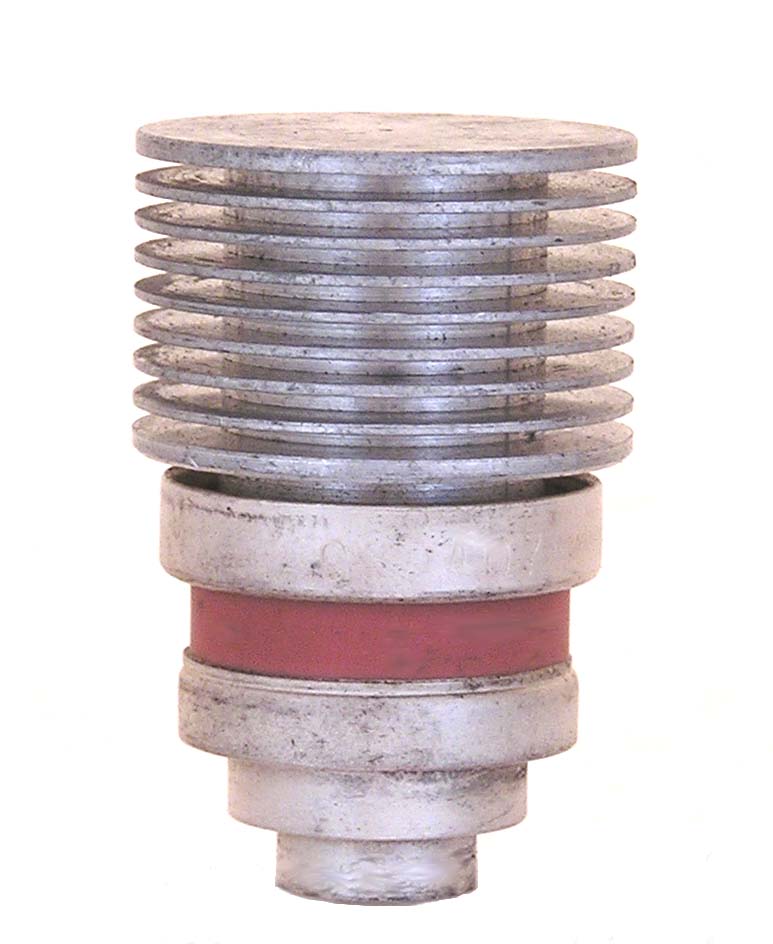

The 6816 is a 115 watt tetrode with a maximum frequency for full output of 400 MHz and can be used to 2000 MHz. The 6884 is the same tube with a 26.5 volt, .53 amp filament. An RCA development as in this example, they were also made by Eimac.

Length = 1.88" Diameter = 1.25"
Max voltage = 1000
Max current = 180 ma
Fil voltage = 6.3
Fil current = 2.1 amps         GOTO INDEX
