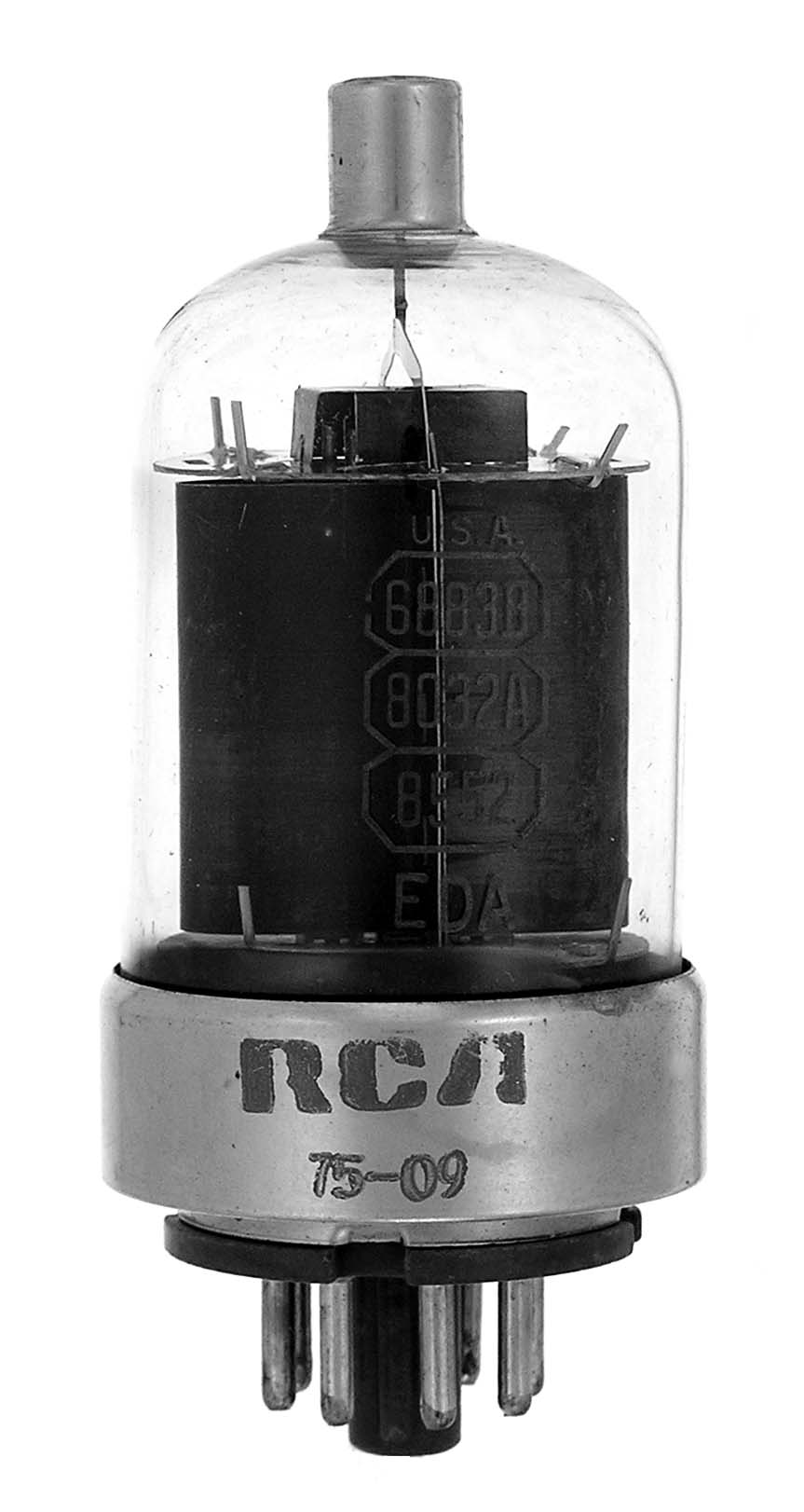

6883B

The 6883B/8032A/8552 is a 20 watt beam pentode with a maximum frequency of 60 MHz and usable to 175 MHz. This is a 13.5 volt heater version of the 6146B or 6883A with a "dark heater".

Length = 3.51" Diameter = 1.65"
Max voltage = 750
Max current = 135 ma
Fil voltage = 13.5
Fil current = .562 amp         GOTO INDEX
