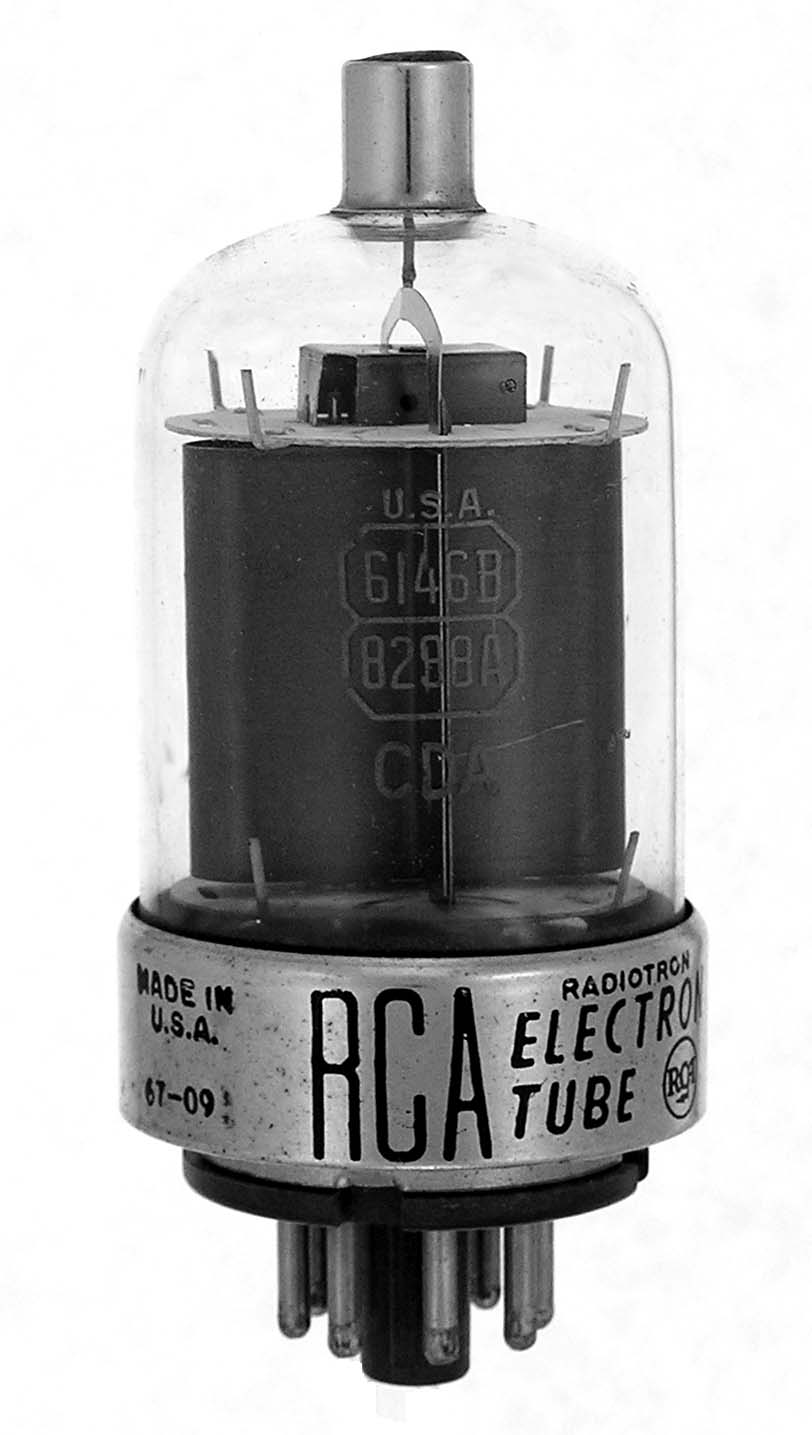

6146B

The 6146B or 8298A is a 35 watt beam pentode with a maximum frequency of 60 MHz for full power and usable to 175 MHz. This is a higher power version of the 6146 (A).

Length = 3.51" Diameter = 1.65"
Max voltage = 750
Max current = 160 ma
Fil voltage = 6.3
Fil current = 1.125 amps
Data sheet:
