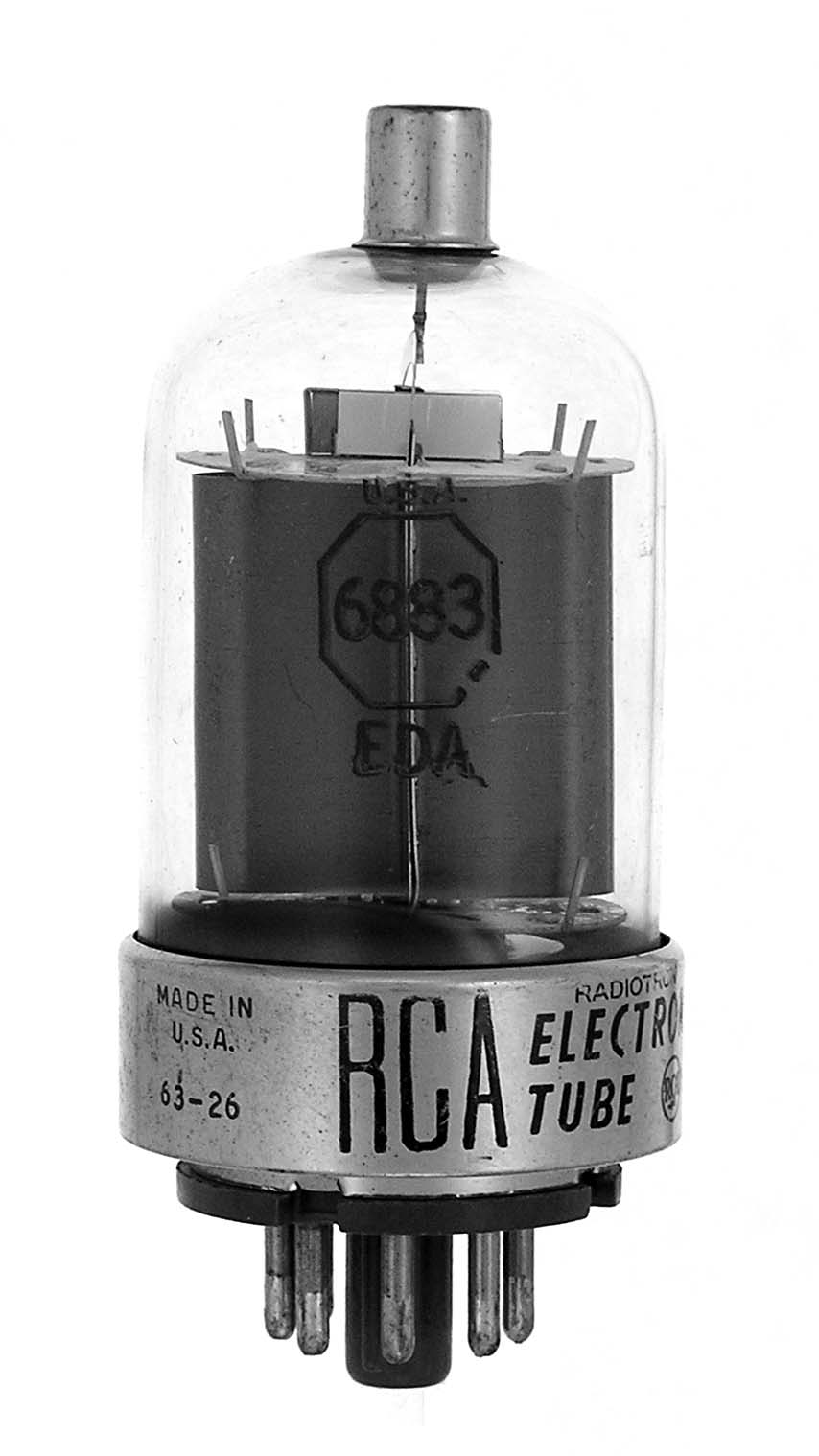

6883

The 6883 is a 20 watt beam pentode with a maximum frequency of 60 MHz and usable to 175 MHz. This is a 12.6 volt heater version of the 6146.

Length = 3.51" Diameter = 1.65"
Max voltage = 750
Max current = 135 ma
Fil voltage = 12.6
Fil current = .585 amp         GOTO INDEX
