6166A

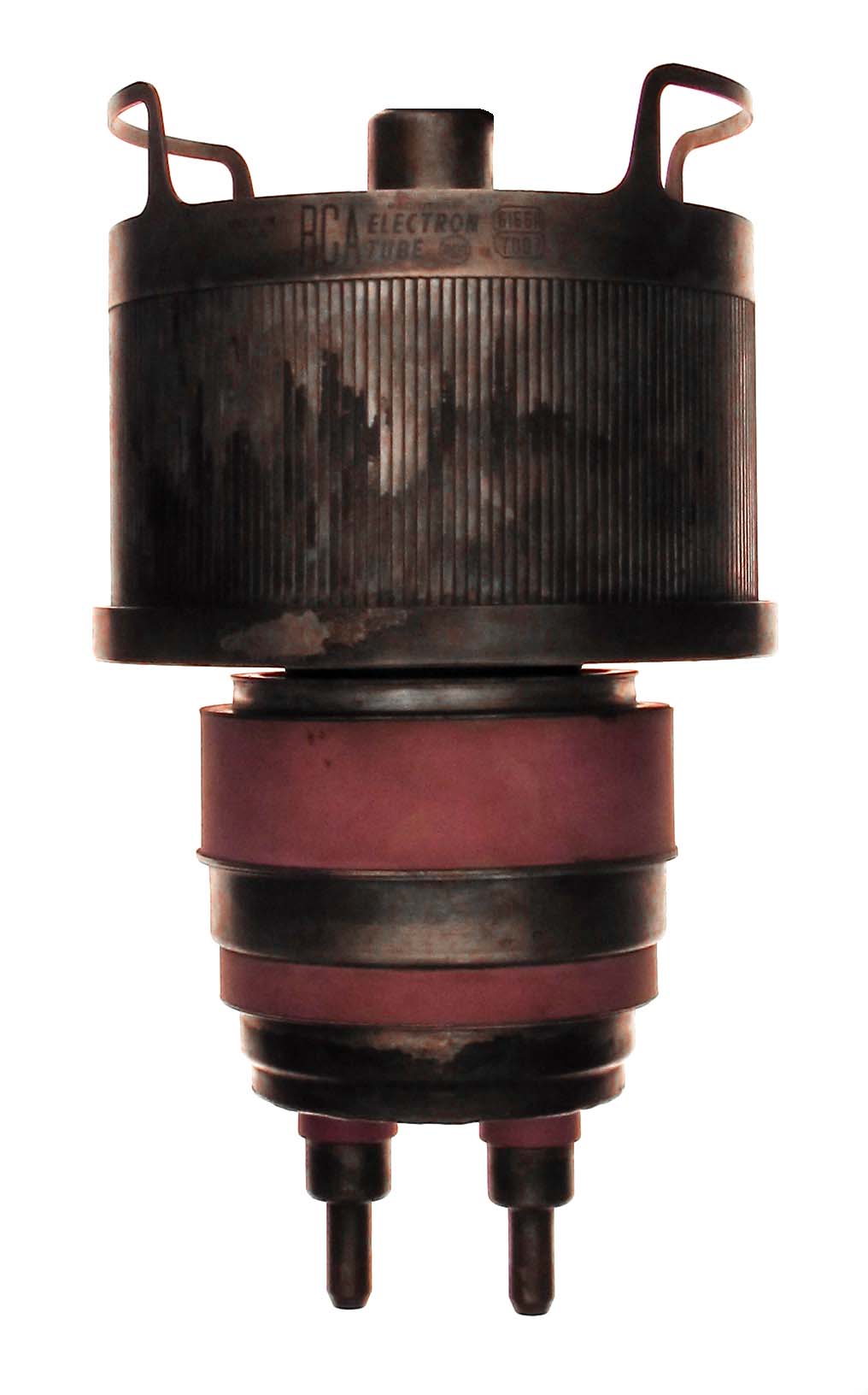

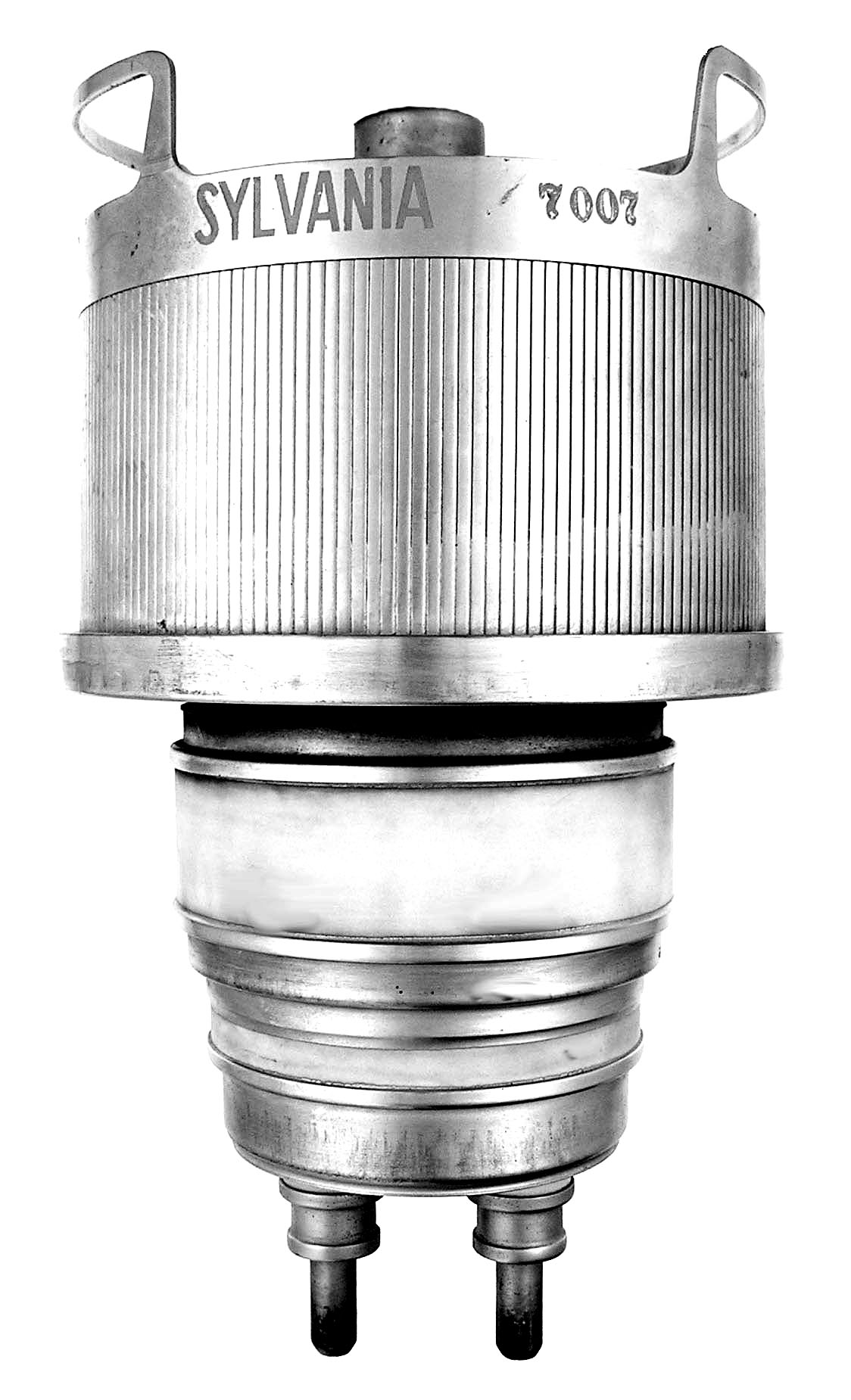

The 6166A or 7007 is a 12000 watt tetrode with full output to 220 MHz. The RCA development was a ceramic version of the 6166, which is glass insulated, and is marked with both numbers. The Sylvania version is only marked with the 7007.

Length = 11.62" Diameter = 6.41"
Max voltage = 6600 piv
Max current = 2.6 amps
Fil voltage = 5
Fil current = 168 amps         GOTO INDEX
