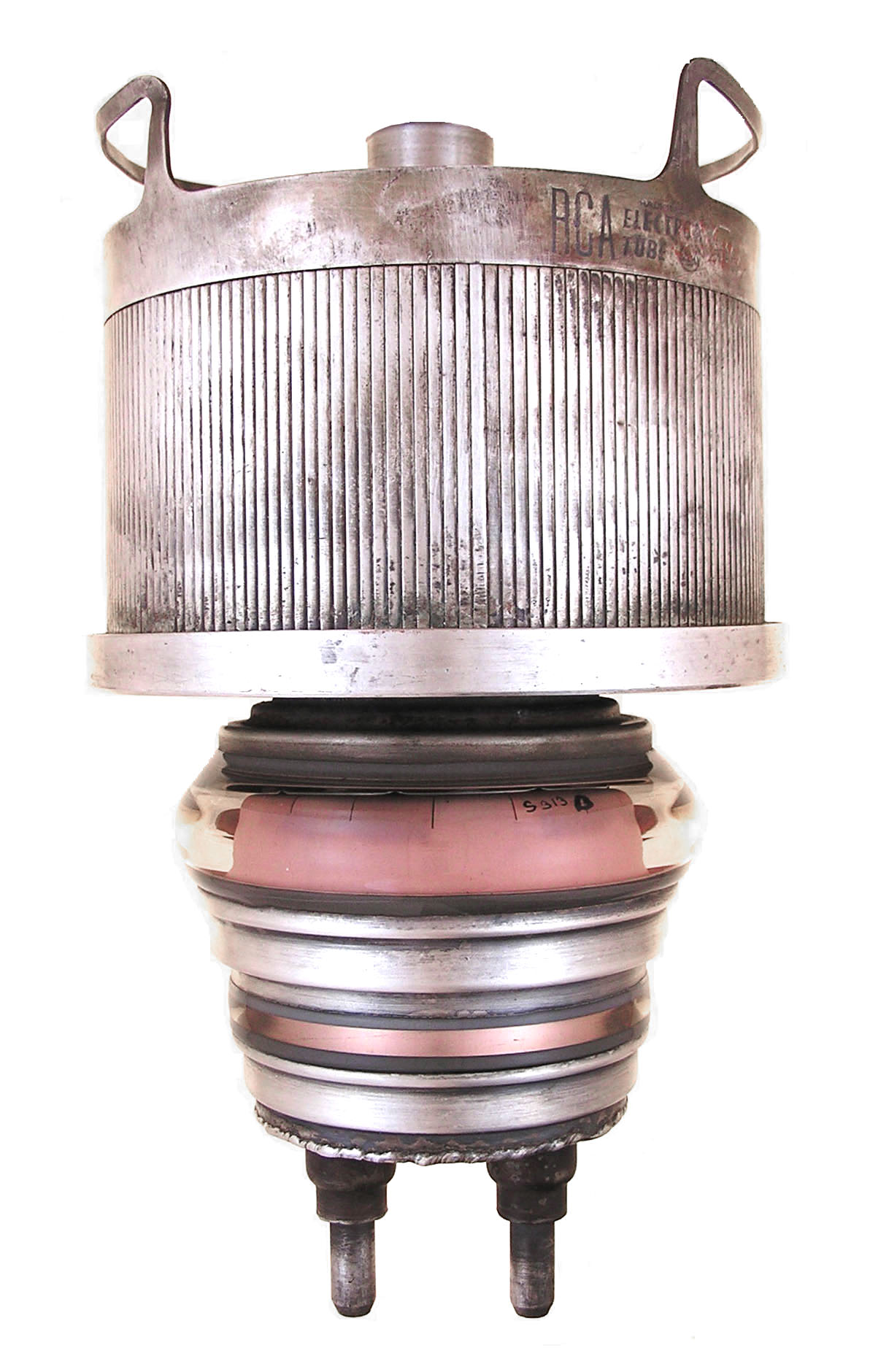

The 6166 is a 10000 watt tetrode with full output to 216 MHz. A later ceramic version was the 6166A or 7007. Length = 11.62" Diameter = 6.41" Max voltage = 6600 piv Max current = 2.6 amps Fil voltage = 5 Fil current = 181 amps GOTO INDEX
The 6166 is a 10000 watt tetrode with full output to 216 MHz. A later ceramic version was the 6166A or 7007.
