560

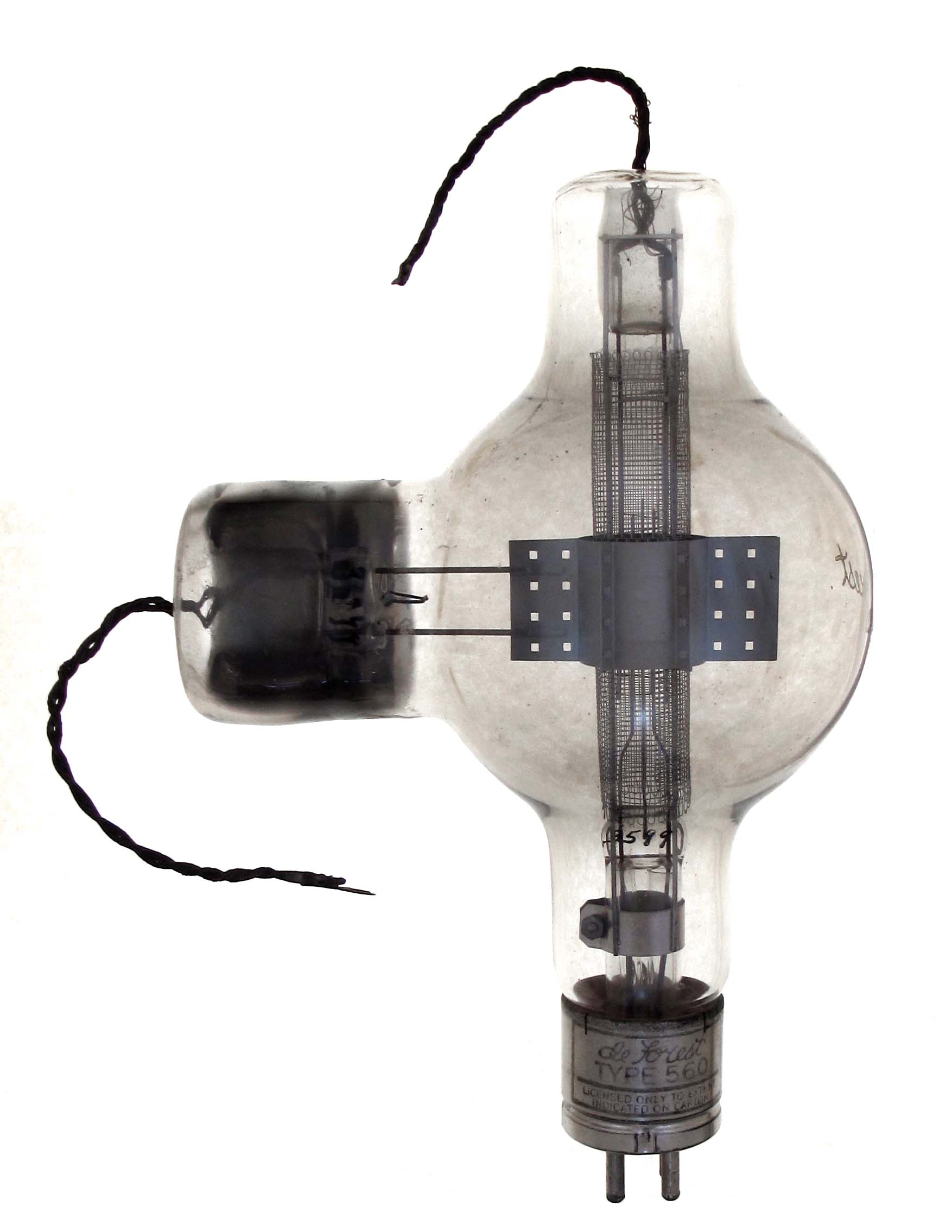

The 560 is a 100 watt dissipation tetrode. Full ratings to 30 MHz. This is the De Forest version of RCA's 860 .

Length = 8.81" Diameter = 4.59"
Max voltage = 3000
Max current = 85 ma
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
