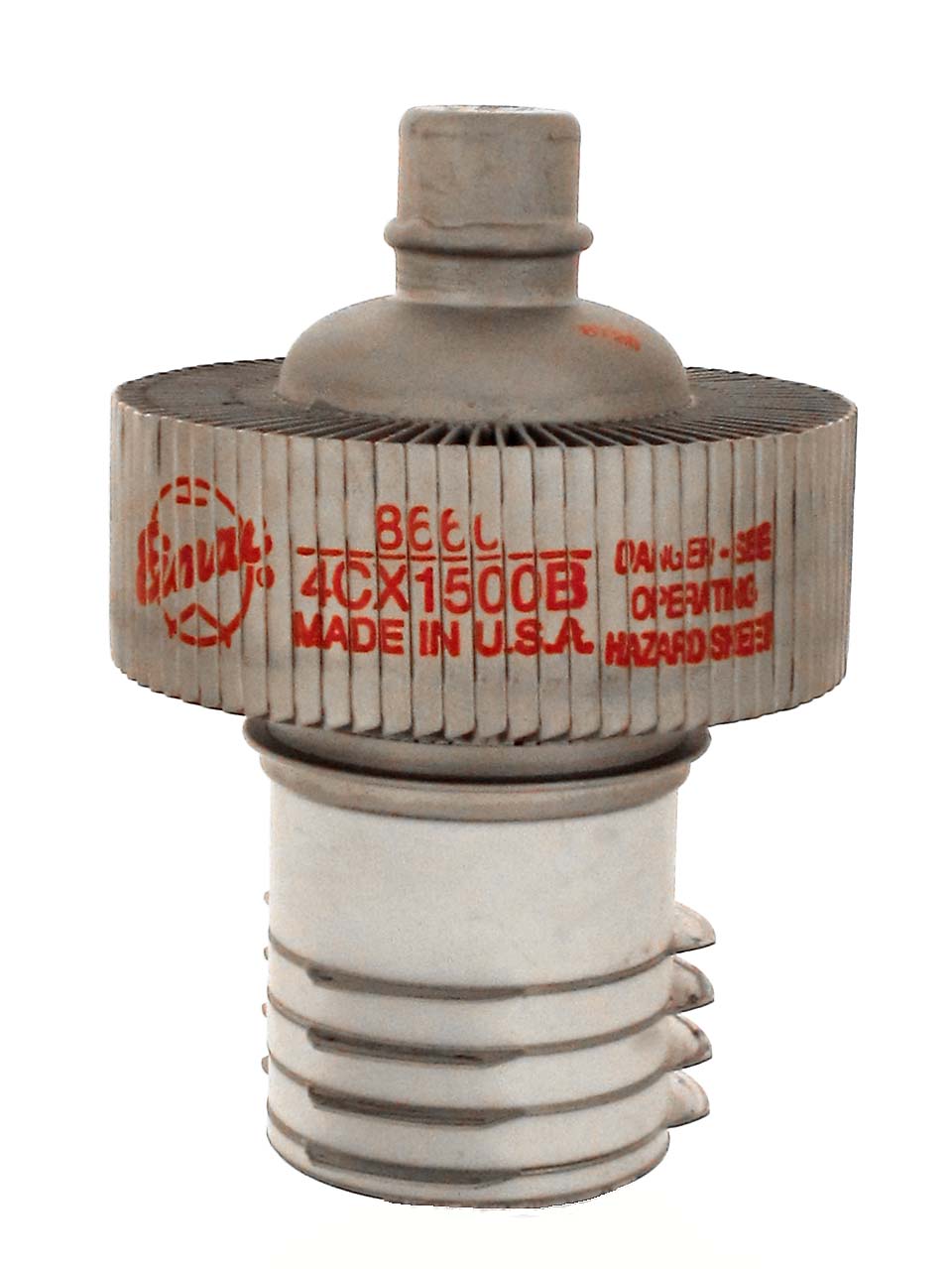

4CX1500B

The 4CX1500B or 8660 is a 1500 watt, forced air cooled, tetrode with a maximum full rating frequency of 110 MHz. The 4CW2000A or 8244 is the same tube with a water jacket.

Length = 4.80" Diameter = 3.37"
Max voltage = 3000
Max current = 900 ma
Fil voltage = 6
Fil current = 10 amps         GOTO INDEX
