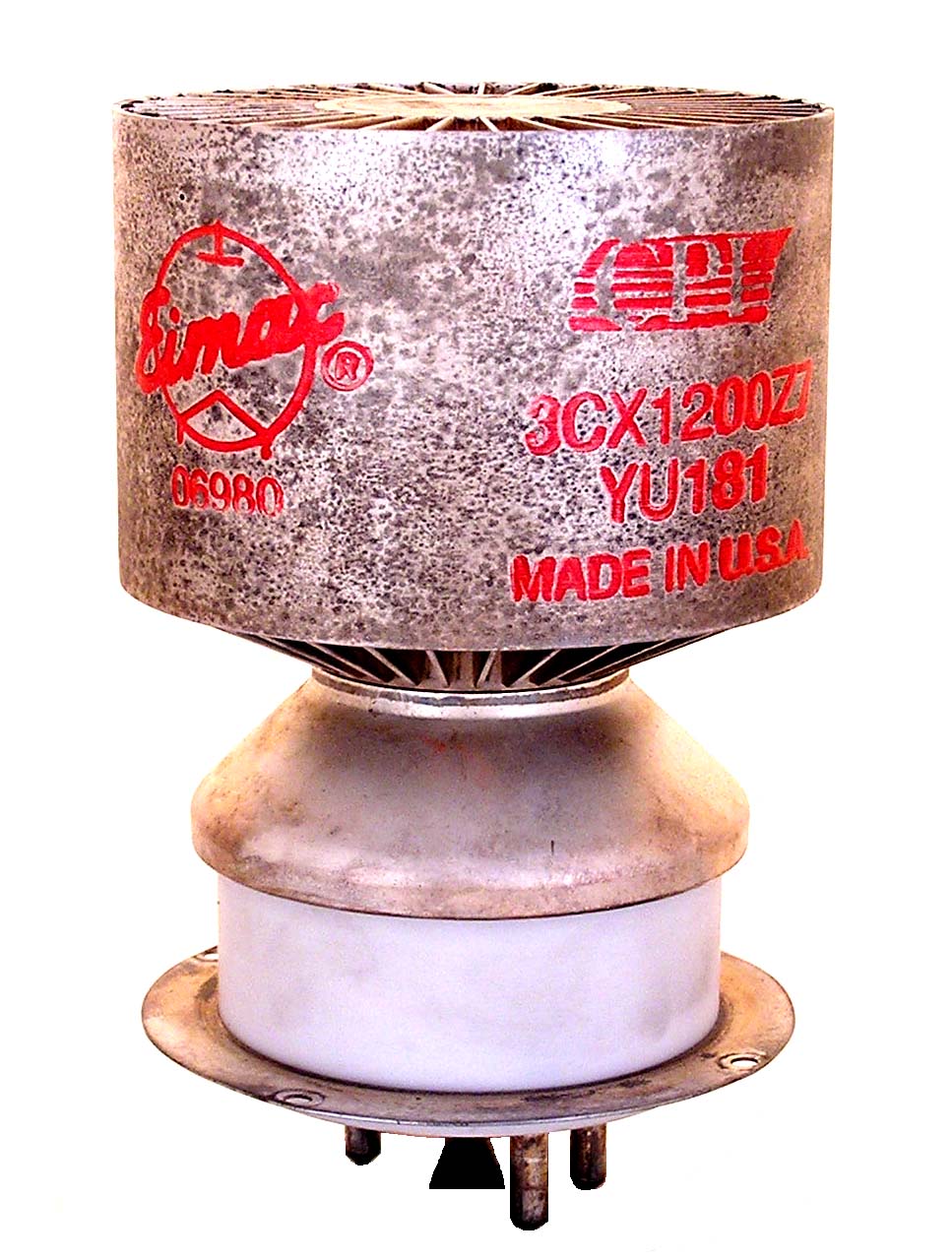

3CX1200Z7

The 3CX1200Z7 or YU-181 is a 1200 watt triode with a mu of 200 and a maximum frequency of 110 MHz. It was designed for zero bias, grounded grid service.

Length = 5.55" Diameter = 3.50"
Max voltage = 5500
Max current = 800 ma
Fil voltage = 6.3
Fil current = 25 amps         GOTO INDEX
