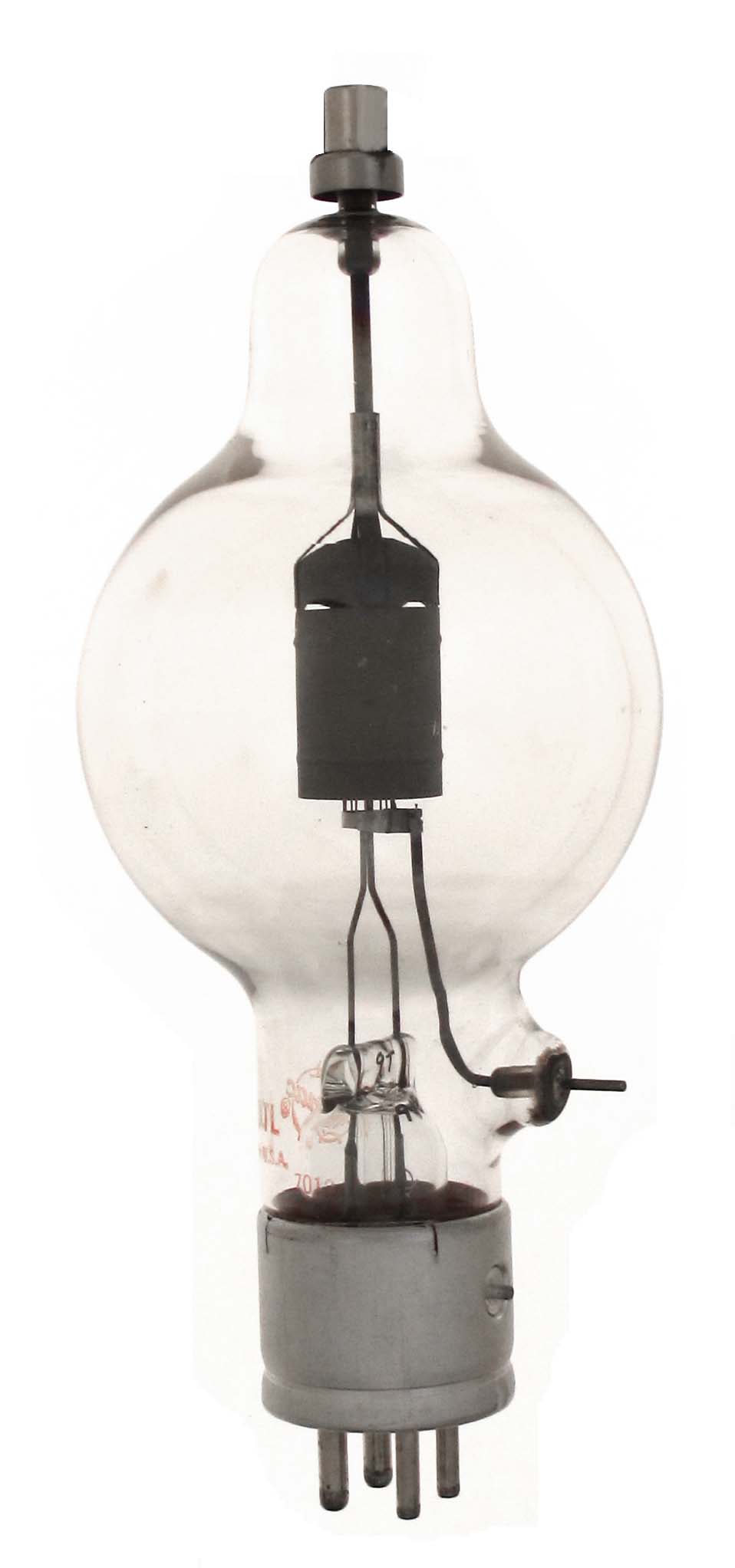

100TL

The 100TL is the new designation for the 100T "LO" version made by Eimac. It is rated at 100 watts with full power to 40 MHz. The 100TL has a mu of 12.

Length = 7.75" Diameter = 3.19"
Max voltage = 3000
Max current = 225 ma
Fil voltage = 5
Fil current = 6.3 amps
Data sheet:
