3X600/Y-872

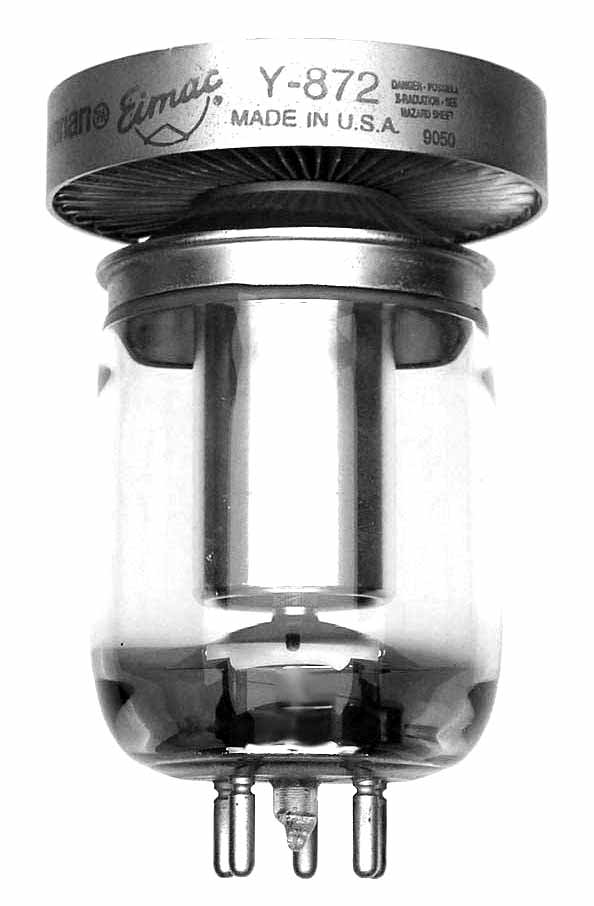

The 3X600/Y-872 is a 600 watt dissipation, forced air cooled, pulse triode with a mu of 200 made by EIMAC. Maximum frequency for full ratings is 110 MHz.

Length = 5.62" Diameter = 3.72"
Max voltage = 45000 peak
Max current = 5.8 amps peak
Fil voltage = 5
Fil current = 14.6 amps         GOTO INDEX
