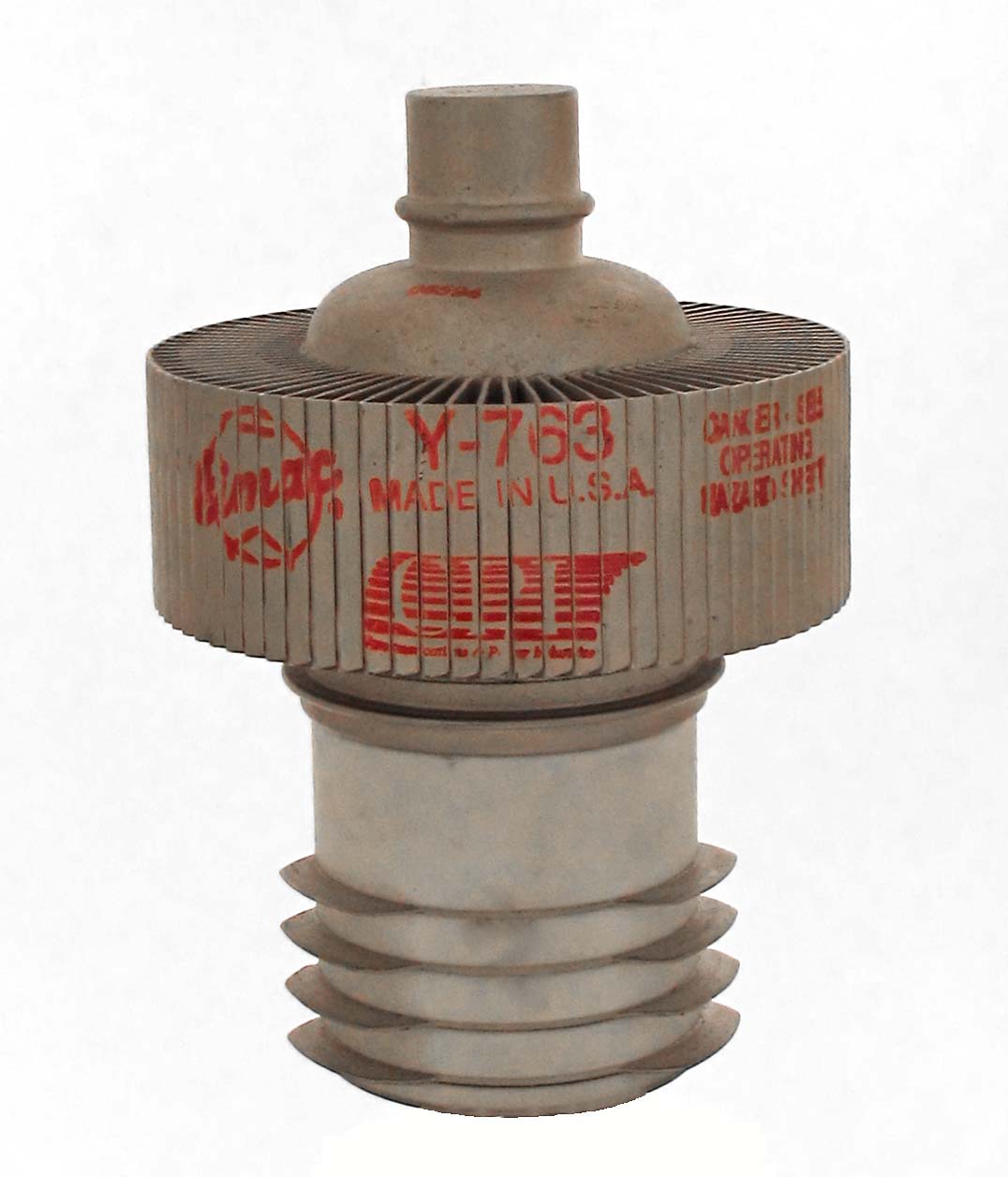

Y-763

The Y-763 is a 1500 watt, forced air cooled, tetrode with a maximum full rating frequency of 110 MHz. This tube is a testing derived varient the 4CX1500B.

Length = 4.80" Diameter = 3.37"
Max voltage = 3000
Max current = 900 ma
Fil voltage = 6
Fil current = 10 amps         GOTO INDEX
