Y667A

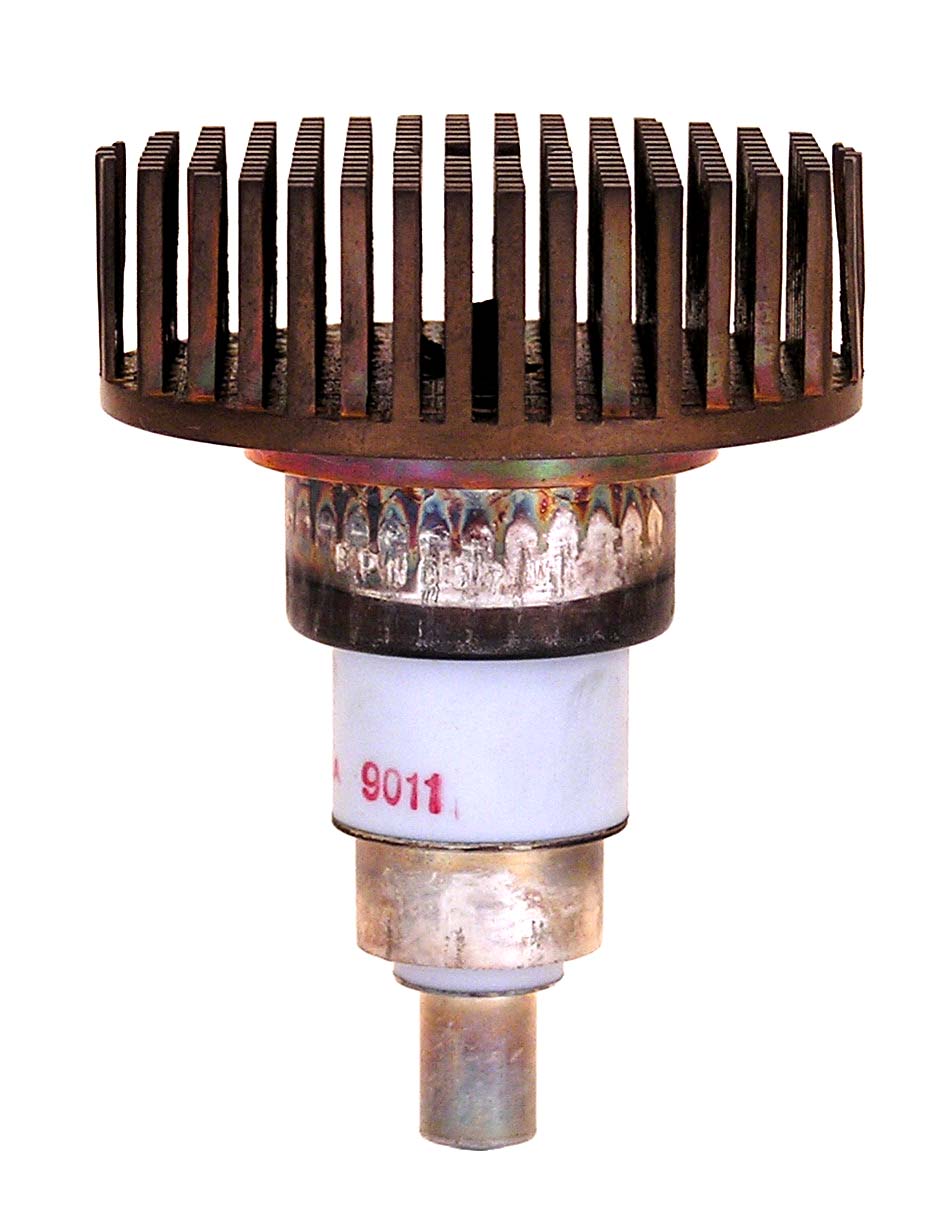

The Y667A is a 200 watt, forced air cooled, planar triode with a mu of 80 and a maximum frequency of 2.5 GHz. Made by Eimac based on the standard 7211 (7211SRCL), it is electrically the same as the Y667 except for the larger anode cooler.

Length = 2.70" Diameter = 2.02"
Max voltage = 2500, 3500 pulse
Max current = 150 ma
Fil voltage = 6
Fil current = 1.2 amps         GOTO INDEX
