Y-579

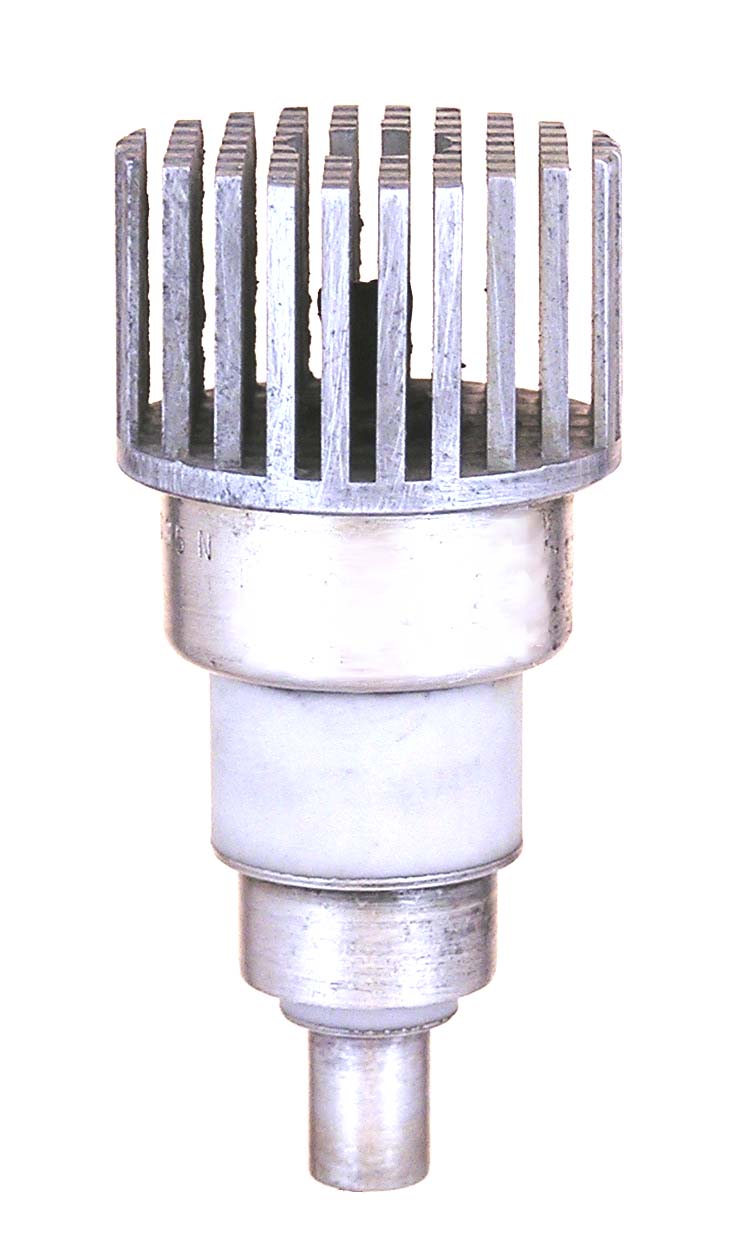

The Y-579 is a 150 watt, planar triode with a full rating frequency of 3 GHz and a mu of 100 designed for TV translator service. The pin type radiator is for forced air cooling. The Y-579A is the same tube with a mu of 200.

Length = 2.75" Diameter = 1.27"
Max voltage = 2500
Max current = 400 ma
Fil voltage = 6
Fil current = .1.3 amp         GOTO INDEX
