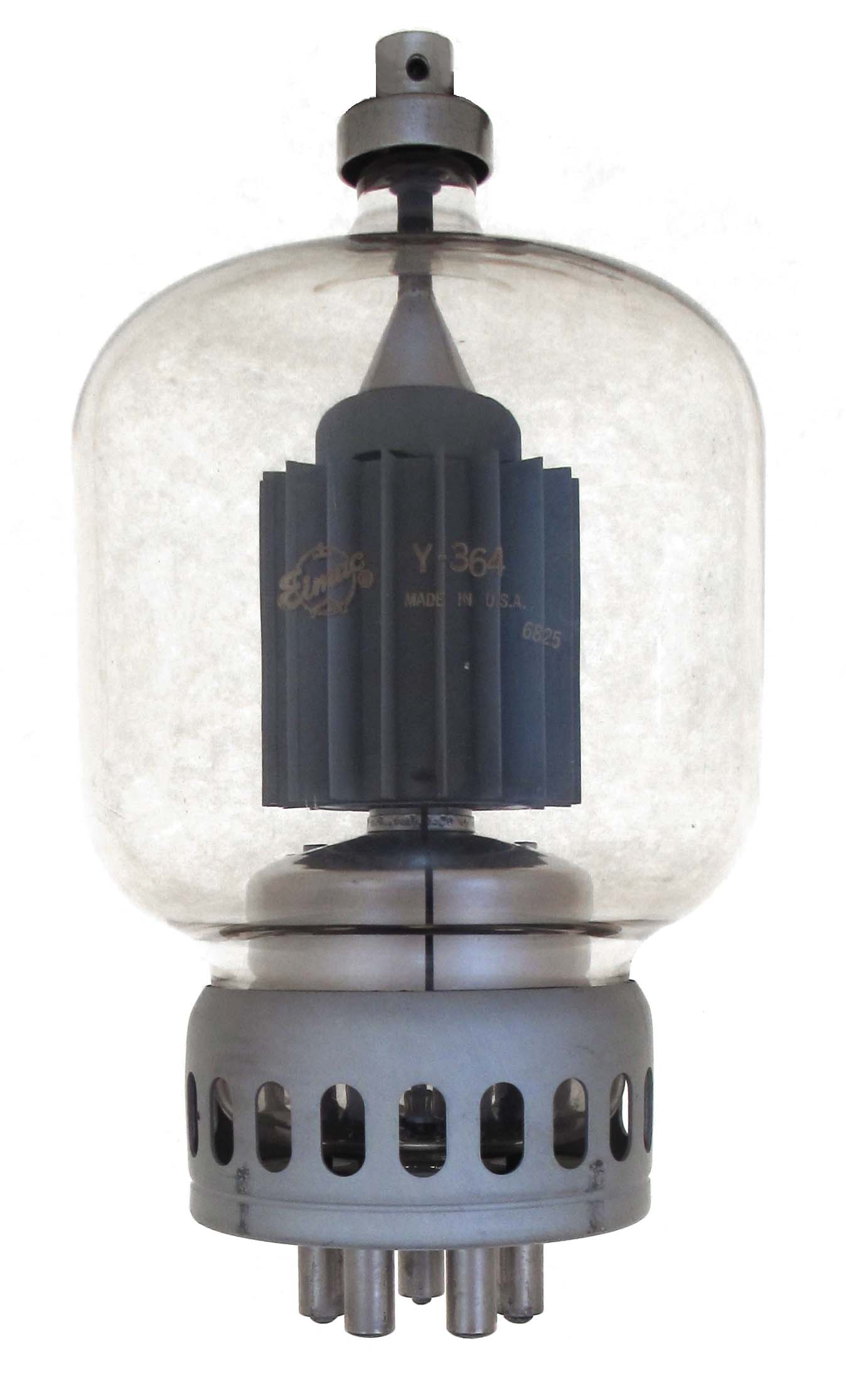

Y-364

The Y-364 is a 1000 watt dissipation tetrode. The usable frequency for maximum ratings is 110 MHz. It is a varient of the 4-1000A.

Length = 9.63" Diameter = 5.25"
Max voltage = 6000
Max current = 700 ma
Fil voltage = 7.5
Fil current = 21 amps         GOTO INDEX
