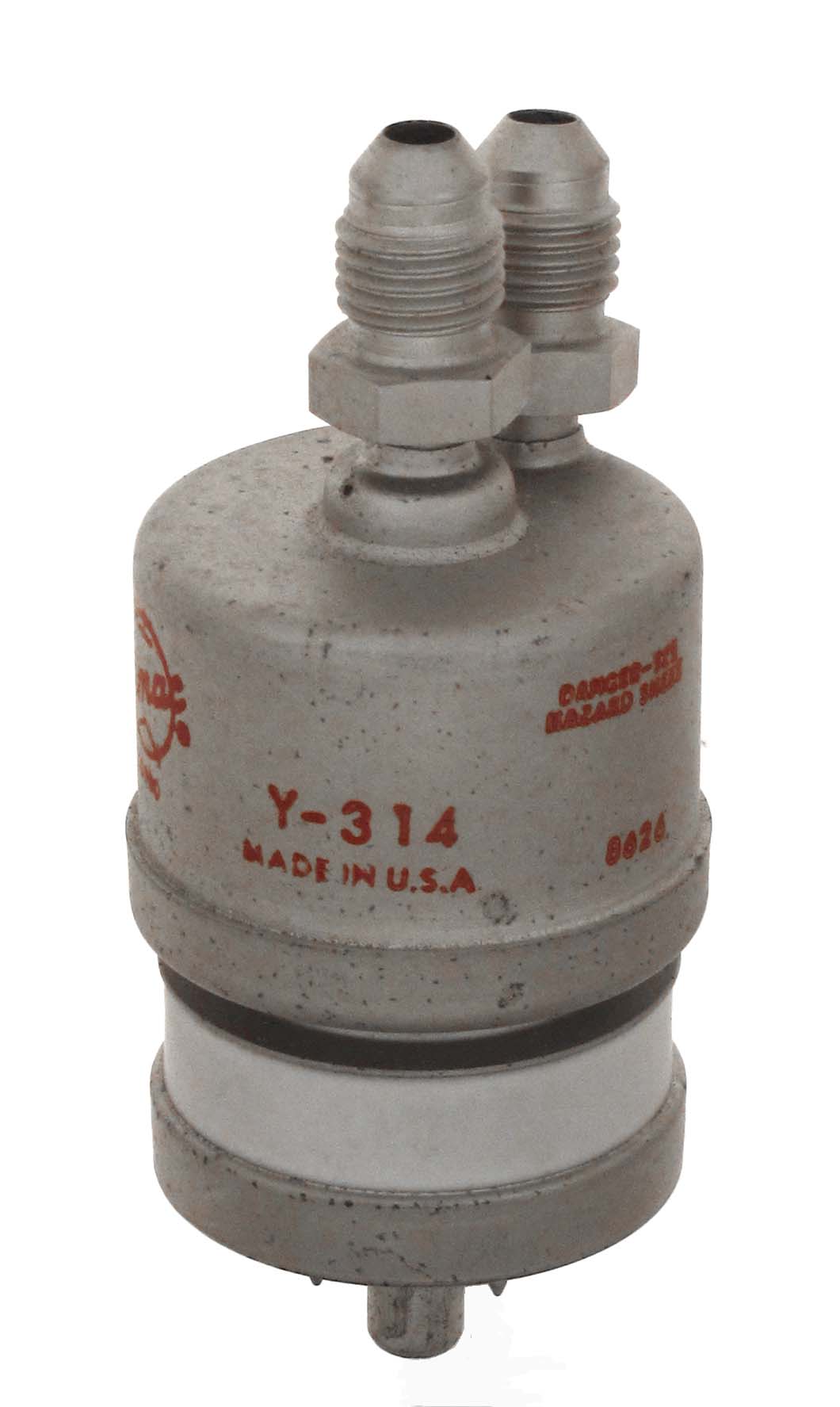

Y-314

The Y-314 is a 300 watt, water cooled, tetrode with full ratings to 500 MHz. The Y-314 is a special Y-253A which is a 26.5 volt varient of the 4W300B with special fittings.

Length = 3.58" Diameter = 1.56"
Max voltage = 2000
Max current = 250 ma
Fil voltage = 26.5
Fil current =         GOTO INDEX
