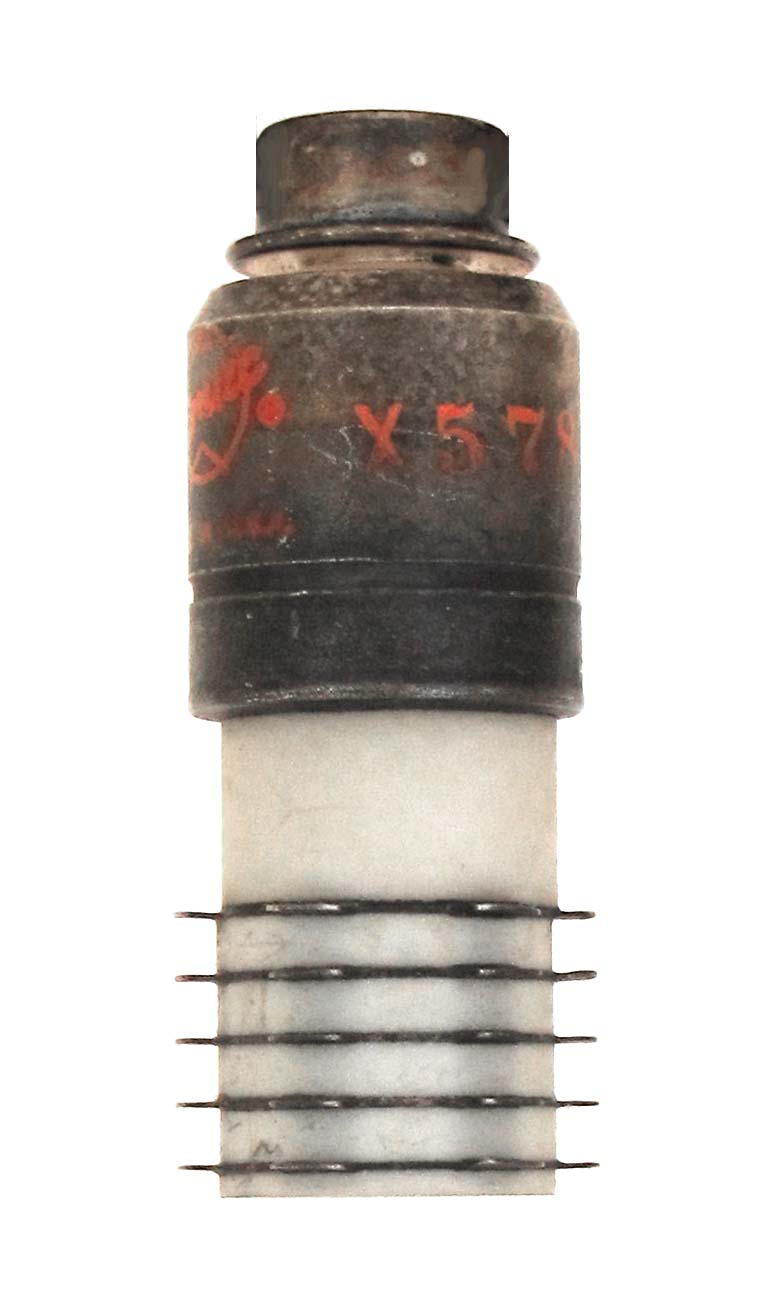

X578K

The X578K is an experimental version of the 4CN15A which is a 15 watt pulse tube. This tube was testing a rhenium one-second-warmup heater.

Length = 2.50" Diameter = 1.25"
Max voltage = 2000
Max current = .25 amp
Fil voltage = 6
Fil current = 2.6 to 3.1 amps         GOTO INDEX
