X504

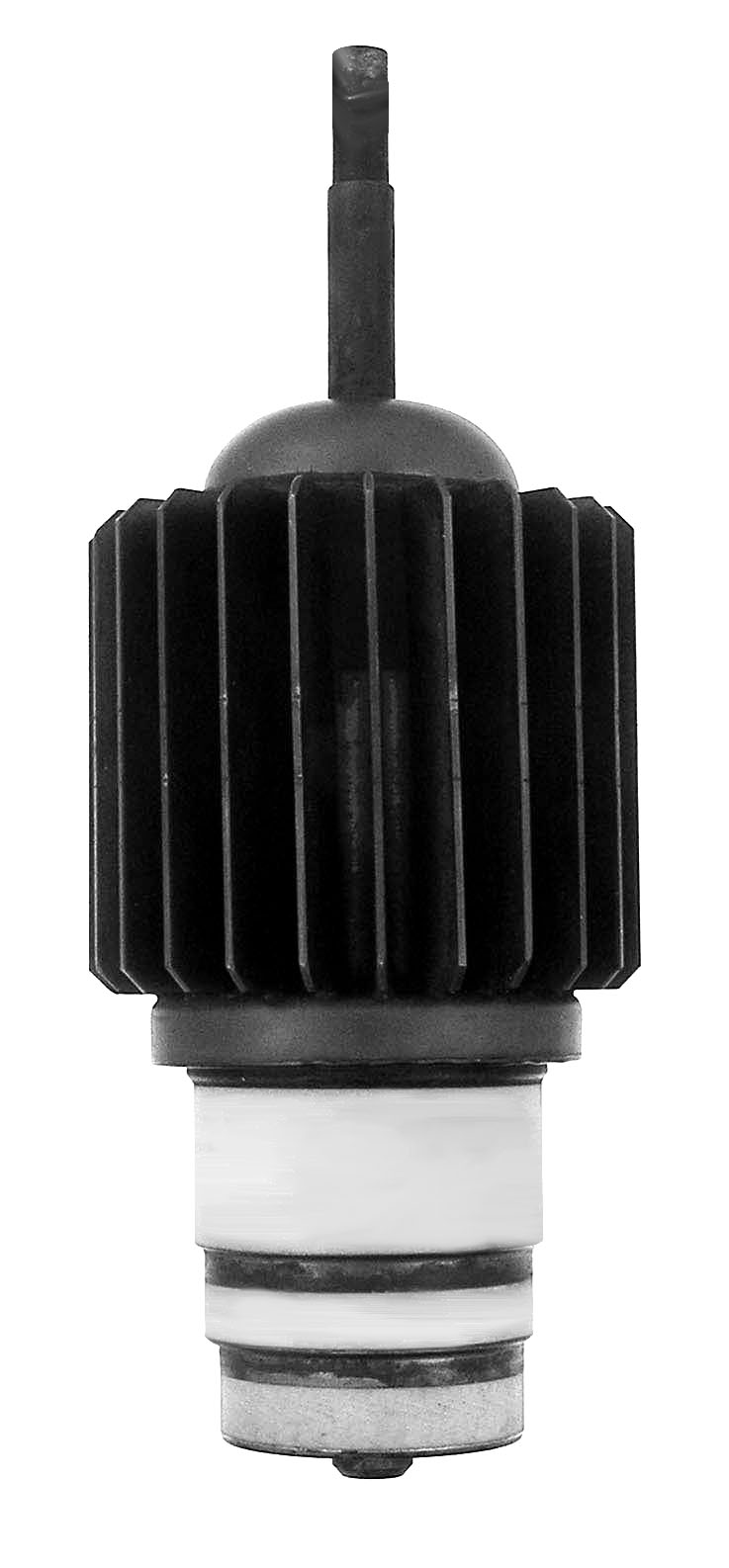

The X504 is triode tube with a small, stepped, cylindrical base and finned anode made by EIMAC. Internally it is supposed to be a 450T and one of the first metal-ceramic tubes ever made circa 1951. The evacuation tube hasn't been sealed and cut yet. After sealing, the tube would have been 6.00" long.

Length = 7.75" Diameter = 2.75"
Max voltage =
Max current =
Fil voltage =
Fil current =         GOTO INDEX
