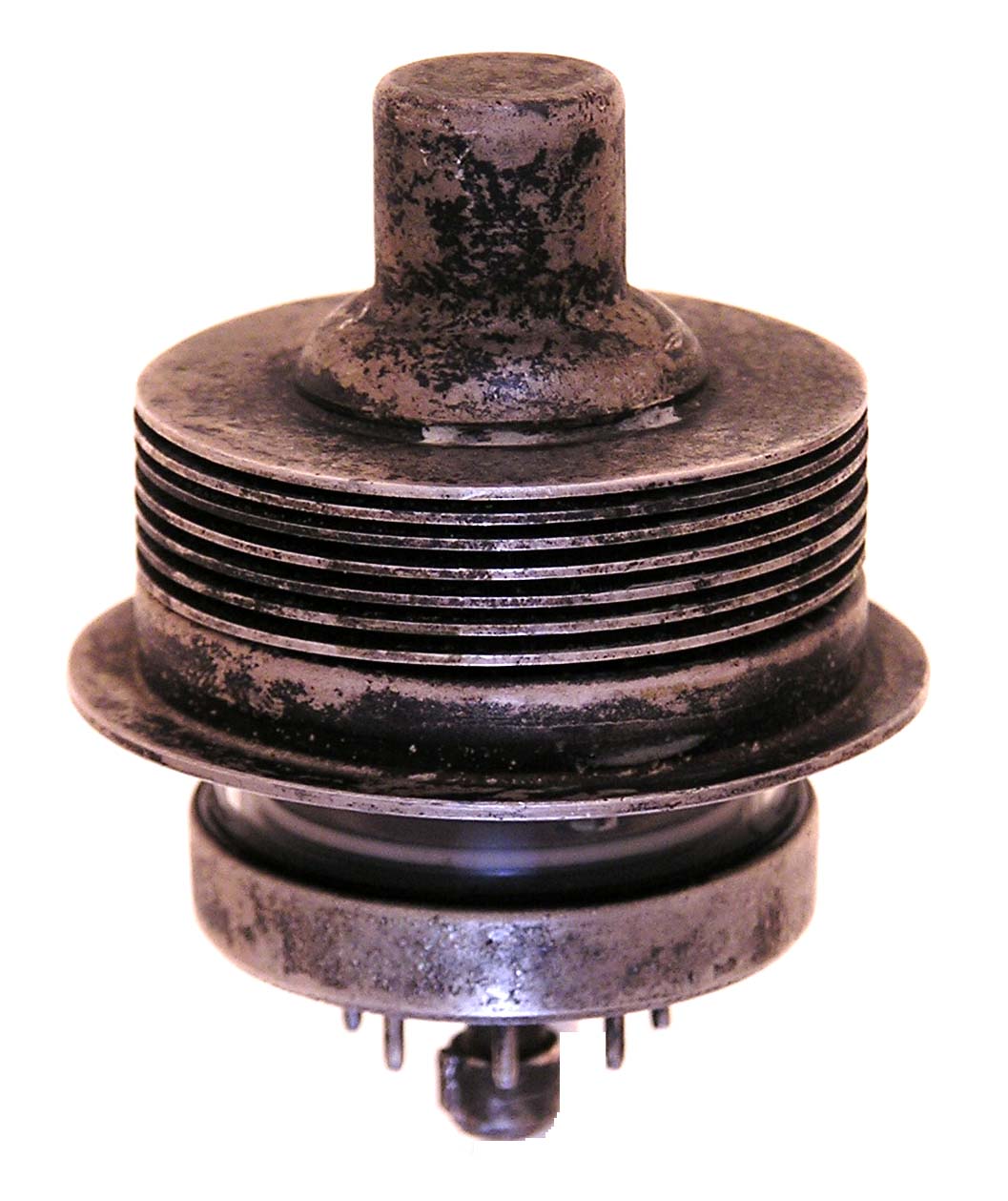

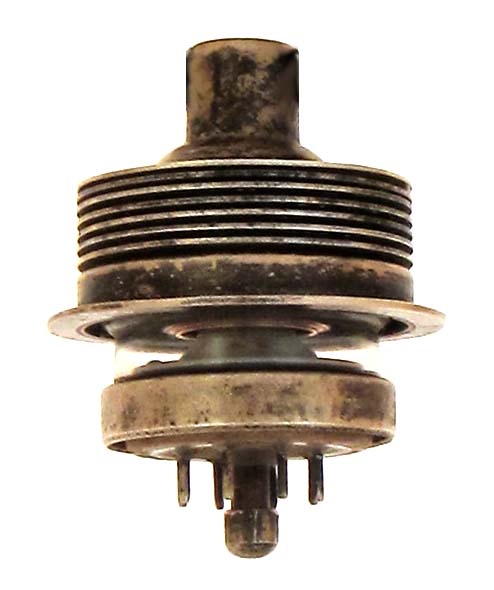

The X476 is a 100 watt Eimac experimental tetrode based on the 4X100A with a special transverse cooled anode and an extra large diameter grid ring. Made for Collins Radio ca. 1949.
Length = 2.60" Diameter = 1.937"
Max voltage = 1000
Max current = 250 ma
Fil voltage = 6
Fil current = 2.8 amps GOTO INDEX
