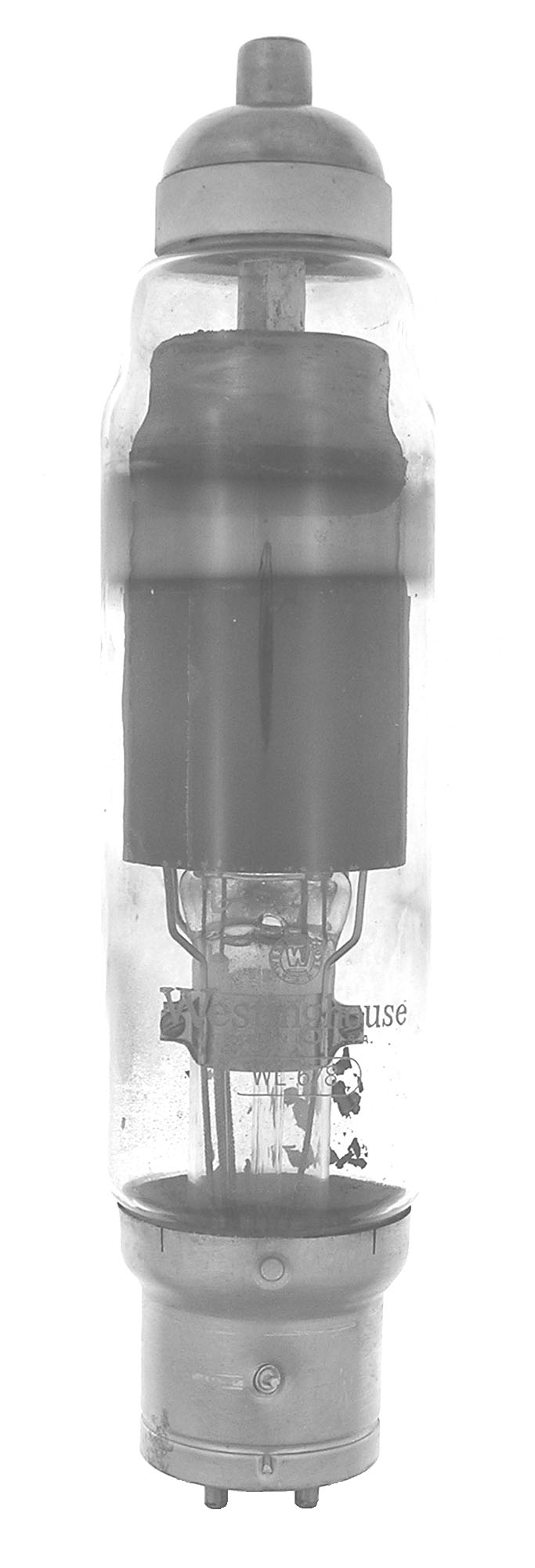

WL678

The WL678 is a triode mercury vapor thyratron designed as a grid contolled rectifier.

Length = 10.87" Diameter = 2.38"
Max voltage = 15000 piv
Max current = 1.6 amps average, 6 amps peak
Fil voltage = 5
Fil current = 7.5 amps         GOTO INDEX
