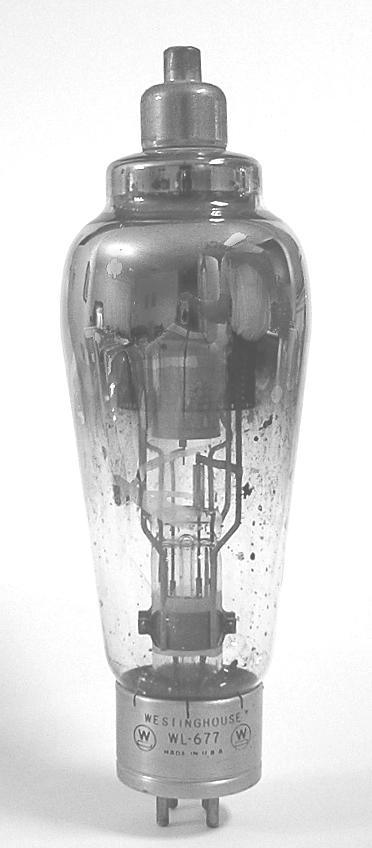

WL677

The WL677 is a triode mercury vapor thyratron designed for control service.

Length = 11.75" Diameter = 3.81"
Max voltage = 10000 forward, 10000 inverse
Max current = 15 peak amps
Fil voltage = 5
Fil current = 10 amps         GOTO INDEX
