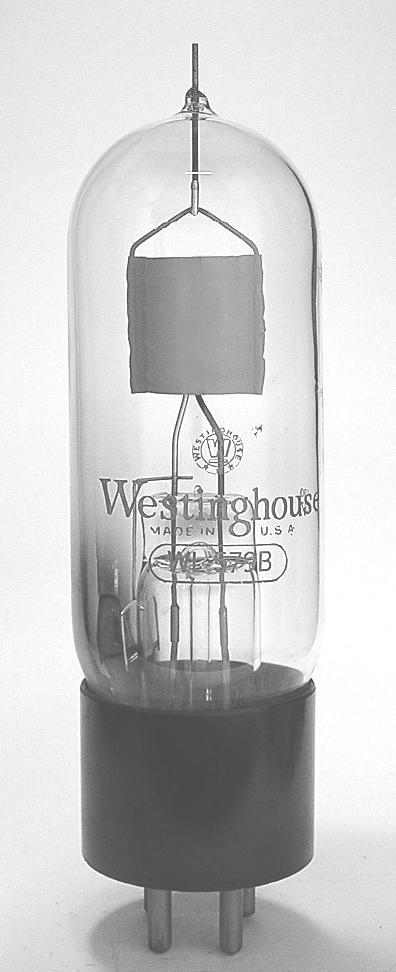

WL579B

The WL579B is a half wave rectifier designed for high voltage, low current applications.

Length = 7.44" Diameter = 2.06"
Max voltage = 20000 piv
Max current = .27 amp peak
Fil voltage = 2.5
Fil current = 6 amps         GOTO INDEX
