WE705A

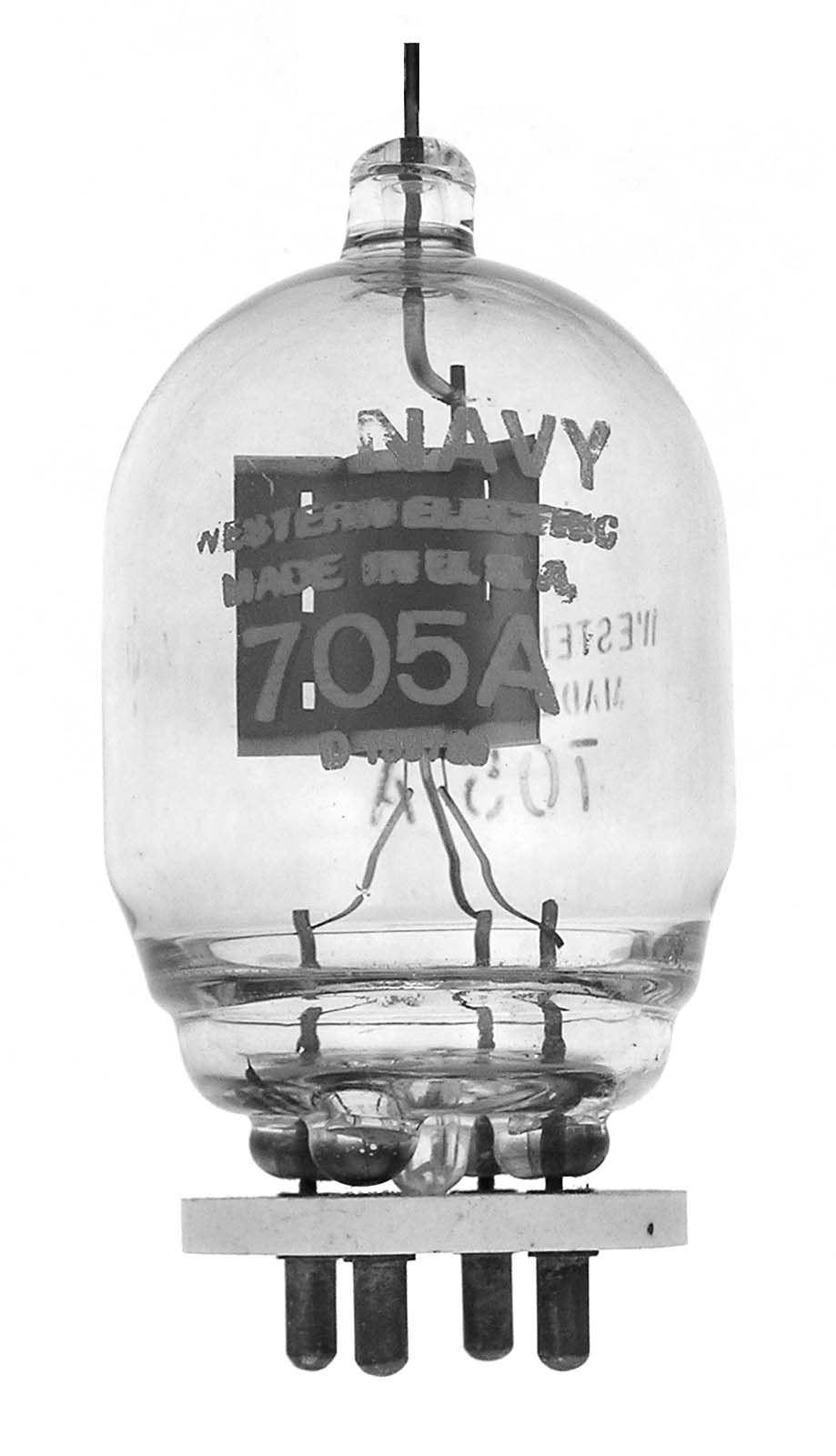

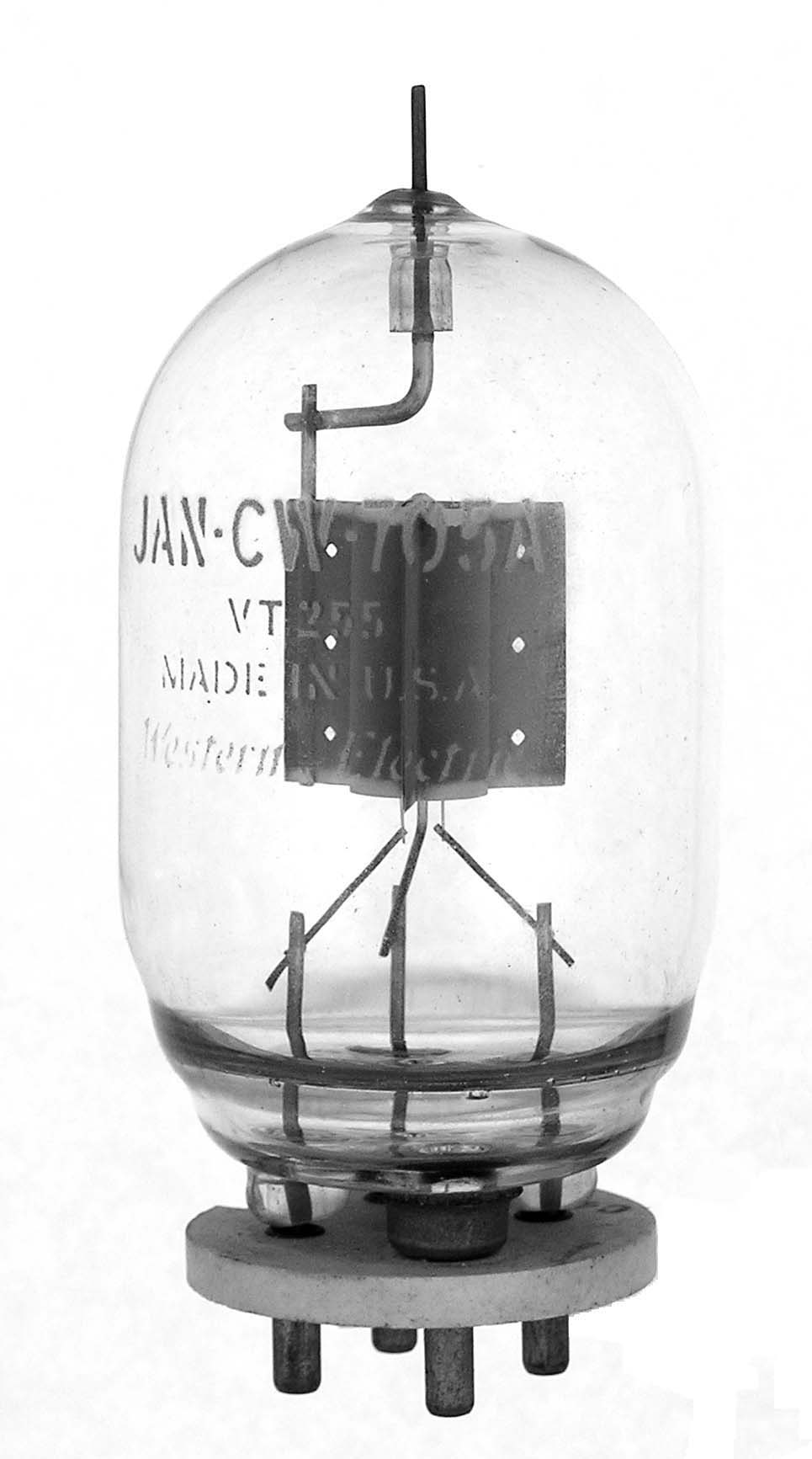

The WE705A is a high voltage rectifier developed by Western Electric. They were made by WE in different configurations. The second tube has a different plate seal and the unused base pin is re-enforced. The third example was made by Lewis & Kaufman and the fourth by Vacuum Tube Products.

Length = 4.75" Diameter = 2.12"
Max voltage = 35000 PIV
Max current = 375 ma
Fil voltage = 2.5
Fil current = 5 amps         GOTO INDEX
