WE449B

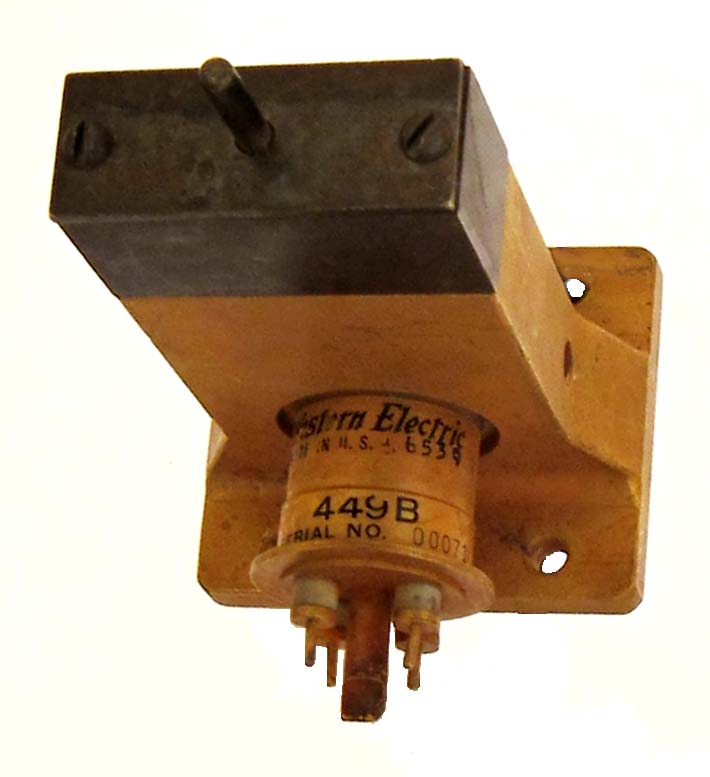

The WE449B is a reflex klystron with operation from 5925 to 6425 MHz. Output is 150 mW. The rod out the end tunes the assembly.

Length = 4.00" Diameter = 2.10" (flange)
Max voltage = 525 beam
Max current = 65 ma
Fil voltage = 6.3
Fil current = .9 amps         GOTO INDEX
