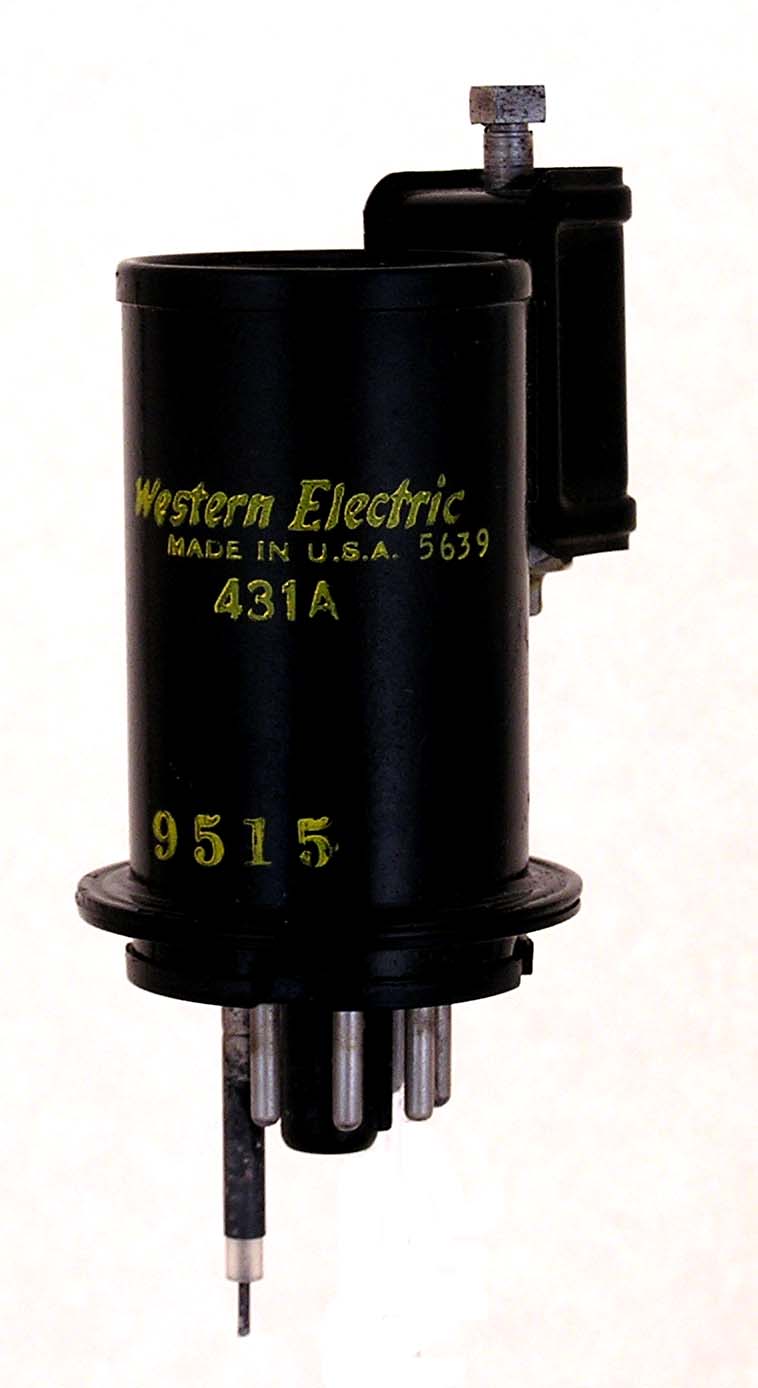

The WE431A is a reflex klystron which operates from 3.7 to 4.2 GHz. Output is into a small coaxial connector. Length = 4.20" Diameter = 1.60" Max voltage = 475 Resonator Max current = 40 ma Fil voltage = 6.3 Fil current = .44 amp GOTO INDEX
The WE431A is a reflex klystron which operates from 3.7 to 4.2 GHz. Output is into a small coaxial connector.
