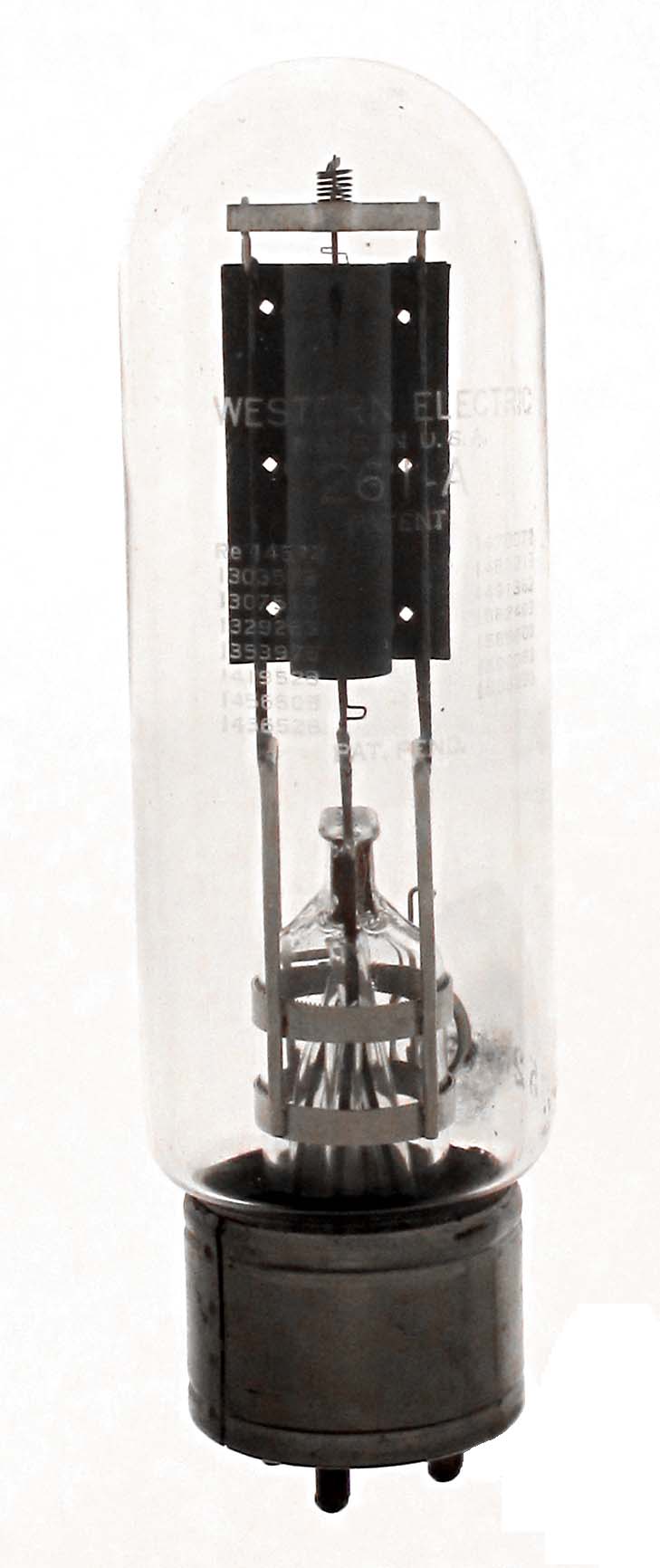

WE261A

The WE261A is a 50 watt triode with a mu of 12 made by Western Electric.

Length = 7.25" Diameter = 2.12"
Max voltage = 1250
Max current = 125 ma
Fil voltage = 10
Fil current = 3.25 amps         GOTO INDEX
