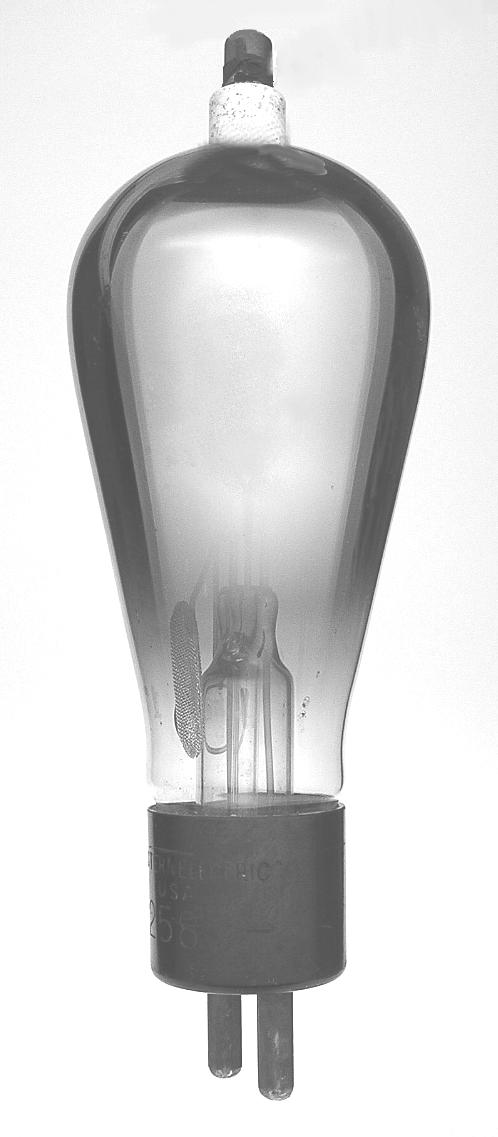

WE258B

The WE258B is a half wave mercury vapor rectifier.

Length = 8.94" Diameter = 2.69"
Max voltage = 7500 PIV
Max current = 1.5 amps peak
Fil voltage = 2.5
Fil current = 7.5 amps         GOTO INDEX
